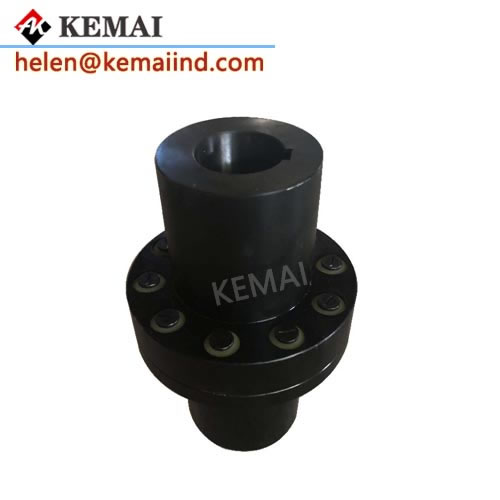

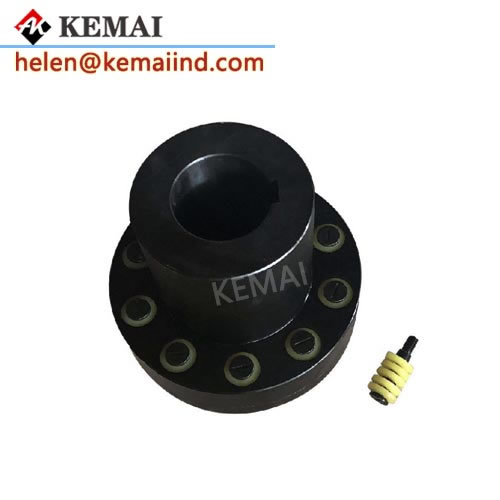

Flexible Pin&Bush Coupling TL Model Other names TL Type Coupling and Tl Sleeve Pin Coupling Flexible Pin Coupling TL Model.

Flexible Pin&Bush Coupling TL Model Brief Introduction:

Plum blossom type elastic shaft coupling is made up of semi-shaft coupling with the same protruding claw and elastic component. Utilizing the plum blossom elastic component put between the protruding claw and two half shaft coupling to realize the connection of two semiaxis devices.

Flexible Pin&Bush Coupling Application:

Flexible coupling mainly used for start frequently,rotating,high-speed,medium torque and high reliability in the workplace. Such as:mining and metallurgy,mine,petroleum,chemical,industry,overweight,transportation,light industry,weaving,water pump,fan,etc. Work environment -35~+800°C.

Model

Limited torque

RMP

Limited torque

Shaft Hole Diameter



Weight

Tn

[n]

d,d1,dz

Y

J,J1,Z

D

S

A

kg

N.m

r/min



L

L1



TL1

6.3

8800

9~14

20~32

14~20

71

3

18

1.2

TL2

16

7600

12~19

32~42

20~42

80

3

18

1.64

TL3

31.5

6300

16~25

42~62

30~62

95

4

35

4.9

TL4

63

5700

20~32

52~82

38~82

106

4

35

2.4

TL5

125

4600

25~40

62~112

44~112

130

5

45

8.36

TL6

250

3800

32~50

82~112

60~112

160

5

45

10.36

TL7

500

3600

40~65

112~142

84~142

190

5

45

15.6

TL8

710

3000

45~80

112~172

84~172

224

6

65

25.4

TL9

1000

2850

50~85

112~172

84~172

250

6

65

30.9

TL10

2000

2300

63~120

142~212

107~212

315

8

80

65.9

TL11

4000

1800

80~140

172~252

132~252

400

10

100

122.6

TL12

8000

1450

100~180

212~302

167~302

475

12

130

218.4

TL13

16000

1150

120~220

212~352

167~352

600

14

180

425.8
