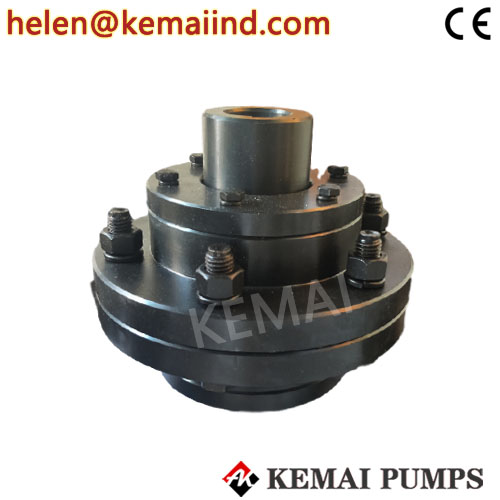

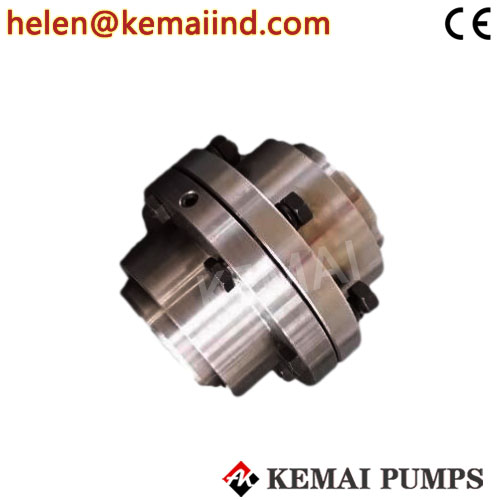

Gear Coupling CL

Gear Coupling CL Also called CL type gear coupling.which is composed of inner gear ring with same number of teeth and flange half coupling with outer teeth.

•

•

Gear Coupling CL Features：

Gear Coupling CL belongs to rigid coupling, which is composed of inner gear ring with same number of teeth and flange half coupling with outer teeth.

Divided into straight teeth and drum tooth outside two kinds of tooth shape, tooth is the so-called drum will made spherical outer teeth, spherical center on the gear axis, backlash is generally large gear, drum gear couplings allows a larger angular displacement (as opposed to ordinary type coupling), can improve the tooth contact conditions, improve the ability to transfer torque, prolong service life.

CL Gear Coupling Introduce:

1. Strong carrying capacity. Under the same outer diameter of inner sleeve and outer diameter of coupling, the carrying capacity of drum type coupling is 15 ~ 20% higher than that of straight type coupling on average.
2. Large angular displacement compensation. When the radial displacement is equal to zero, the allowable angular displacement of the straight type coupling is 1o, while the allowable angular displacement of the drum type coupling is 1o30′, increasing by 50%.
3. The drum tooth surface improves the contact conditions of the inner and outer teeth, avoids the disadvantages of edge extrusion and stress concentration at the end of the straight tooth under the condition of angular displacement.
4. The end of the outer tooth sleeve is shaped like a horn, which makes it convenient to assemble and disassemble the inner and outer teeth;
5. Transmission efficiency is up to 99.7%;

•

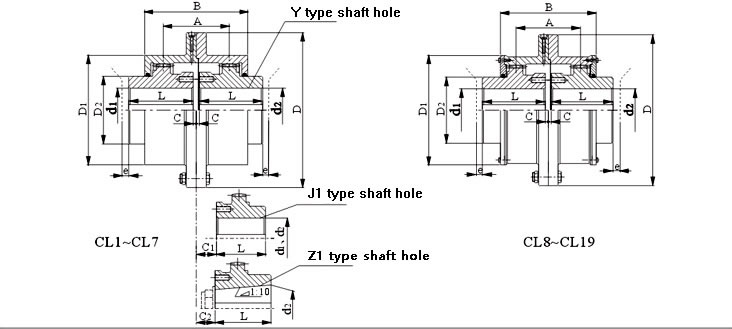

Model	Limited torque	Shaft hole Diameter	Shaft hole length	B	D	D1	D2	A	e	Weight Kg
			Y,J1,Z1
	N.M	d1,d2,dz	L
CL1	710	18~40	30~112	106	170	110	55	49	12	10.9
CL2	1400	30~50	60~112	134	185	125	70	75	12	15.5
CL3	3150	40~60	84~142	170	220	150	90	92	18	28.3
CL4	5600	45~75	84~142	200	250	175	110	125	18	41.3
CL5	8000	50~90	84~172	220	290	200	130	145	25	60.4
CL6	11200	60~110	107~212	246	320	230	140	160	25	82.9
CL7	18000	65~120	107~212	286	350	260	170	185	30	118
CL8	22400	80~140	132~252	325	380	315	190	210	30	160
CL9	28000	90~150	132~302	335	430	365	210	220	30	212
CL10	50000	110~180	167~302	365	490	420	260	245	30	327
CL11	71000	120~220	167~352	405	545	470	300	280	35	443
CL12	100000	140~250	202~410	480	590	520	340	350	35	621
CL13	140000	160~280	242~470	524	680	560	380	375	40	918
CL14	200000	180~320	242~470	565	730	650	420	405	40	1123
CL15	250000	220~360	282~550	644	780	700	480	480	40	1360
CL16	35000	240~400	330~650	722	900	785	530	535	50	2264
CL17	560000	260~450	330~650	800	1000	885	630	625	50	3105
CL18	710000	300~500	330~650	900	1100	990	710	710	50	4219
CL19	1000000	360~560	450~800	910	1250	1090	800	730	60	5908
