GICL Gear Coupling USE:

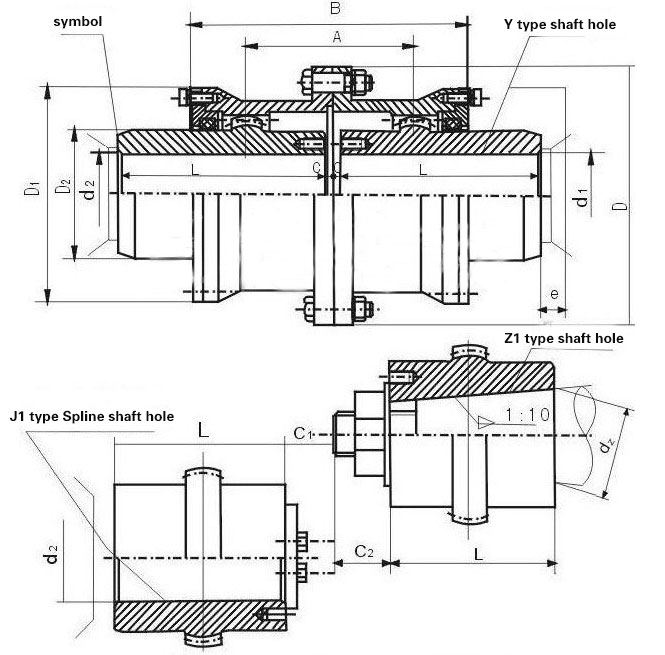

The GICL drum gear coupling consists of a half coupling with the same number of teeth. an inner ring and an outer flange.The outer teeth are straight teeth and two kinds of drum teeth. The tooth is the outer sphere of the tooth.
GICL Gear coupling characteristics:
(1)GICL allows greater angular displacement (relative to straight tooth coupling). which can improve tooth contact conditions. improve transmission torque capacity and extend service life. The contact state of the angular displacement along the tooth width direction.
(2) compensation capability of radial, axial and angular deviation and axial deviation with compact structure. small turning radius, large bearing capacity, high transmission efficiency, low noise and long maintenance cycle;
(3) applicable to low-speed and high-load conditions. such as metallurgy, mining, lifting and transportation industries. as well as the driving shaft, general machinery and other machinery of the petrochemical industry.
