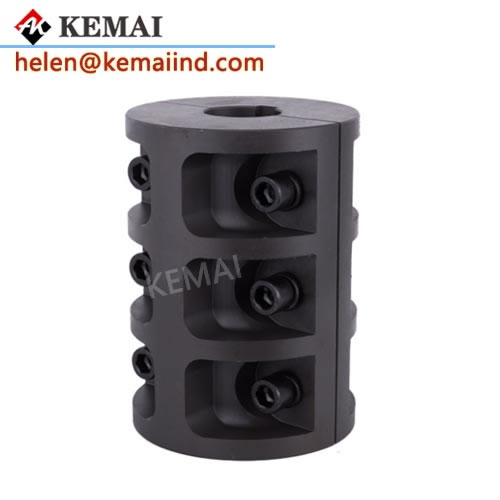

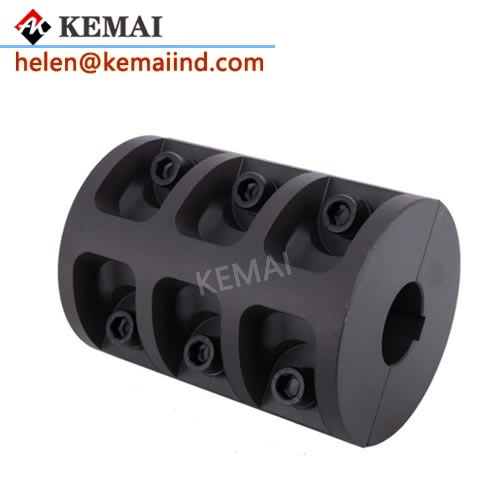

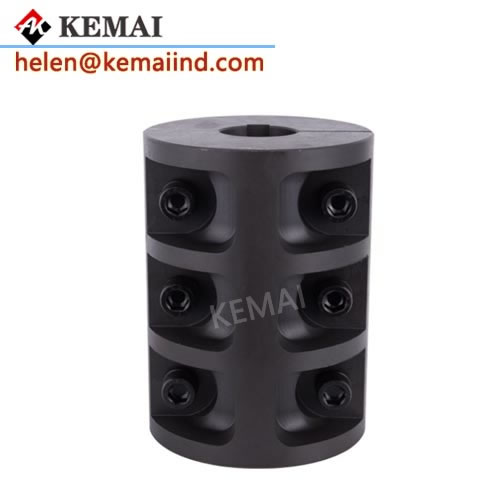

JQ Type Clamped Shell Coupling China KeMai produced is composed of two clamped shells split along the axial direction
JQ Clamped Coupling USE:
JQ type clamped shell coupling USES two clamped shells divided along the axial direction, which is clamped by bolts to realize the connection of two shafts. The torque is transferred by the friction force between the surfaces of the two half couplings, and the flat key is used as the auxiliary connection.
Clamp shell coupling assembly and disassembly shaft without axial movement, so very convenient installation and spherical shell coupling faults is low accuracy in the two axis, complicated structure and shape, low precision manufacturing and balance, is only applicable to low speed and load steady occasions, usually linear velocity at the outer edge of no greater than 5 m/s, when the linear velocity more than 5 m/s need for balance calibration.
The main features of JQ type clamped shell coupling are as follows:
1: Light weight, ultra-low inertia and high sensitivity;
2: Simple structure and convenient loading and unloading.
3:maintenance-free, super oil and corrosion resistance;
4:the main material is optional cast steel/stainless steel;
5:can not allow eccentric, use should let the shaft as far as possible;
6:The fixing method is clamping and the top wire is fixed;
