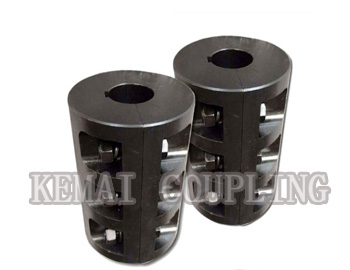

JQ Clamped Coupling uses two clamped shells divided along the axis, which are clamped with bolts to achieve the connection of the two axes.
To improve balance, bolts should be installed in positive and negative phases. JQ Clamped Coupling has no axial, radial and angular compensation performance, simple structure. Easy to install and disassemble, suitable for low speed, no impact, suitable for stirrer and other vertical shaft connection.
The main features of JQ Clamped coupling are:
- Light weight, low inertia, high sensitivity;
- Simple structure, convenient handling.
- maintenance-free, super oil and corrosion resistance;
- the main material can be cast steel/stainless steel;
- can not allow eccentricity, use should try to let the shaft;
- The fixing method is clamping and the top wire is fixed;
JQ Clamped Coupling consists of two split clamped shells. There are mainly single slot and double slot, single slot with keyway and keyway. Single slot clamp rigid coupling single hole and double hole clamp on the shaft. Provides high torque grip without damaging shaft surfaces. Double groove rigid coupling, easy disassembly and maintenance, no need to move other parts. The screw of double groove rigid coupling has positive and negative two kinds, which can keep dynamic balance. Raw materials are aluminum, carbon steel and stainless steel, a variety of models and specifications, can also be customized according to the special requirements of customers at the other end of the metric double aperture coupling.
