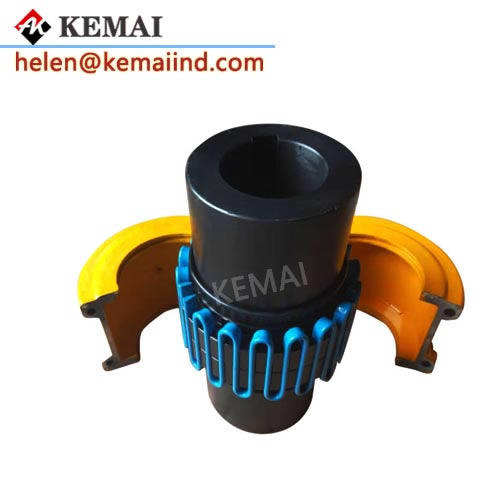

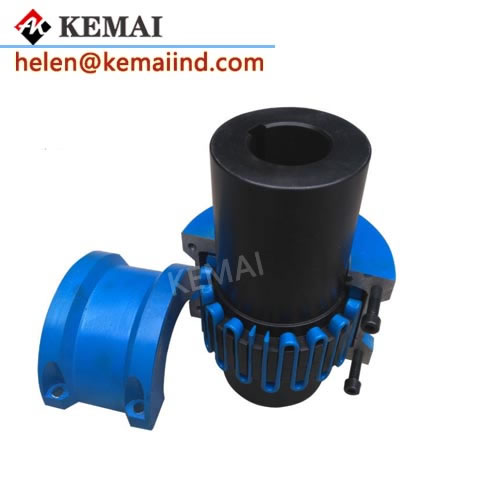

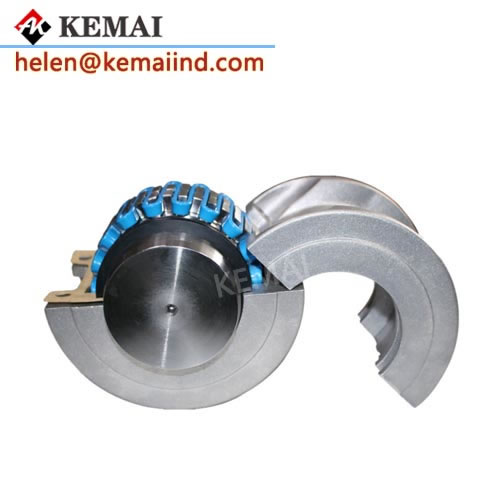

Snake Spring Coupling include JS Spring Coupling and JSB Spring Coupling- Axial mounting,JSS Double Flange Snake Spring Grid Coupling,JSD single flange serpentine spring coupling,JSP series: grid coupling with brake wheel.
Features of Snake Spring Coupling:
1.with the snake spring as the elastic element. So the spring coupling can greatly improve the transmission torque while having strong elasticity. And is widely used in heavy machinery and general machinery occasions.
This special process of the snake-shaped spring. with a long service life,allows a higher speed. In the axial,radial and angular has a good ability to compensate.
The spring coupling is suitable for heavy machinery and general machinery.
2 The torsional short range of the snake spring coupling is 26-270000n.m.Relative radial displacement of 0.5-3mm,axial displacement of 4-20mm and angular displacement of 1o15’are allowed.
3.High transmission efficiency and it can up to 99.47%. short-term overload capacity is twice the rated torque.
4.Simple structure:Convenient disassembly and assembly. long service life;
5.The damping effect is good and resonance is avoided.
