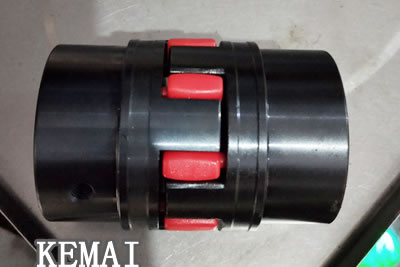

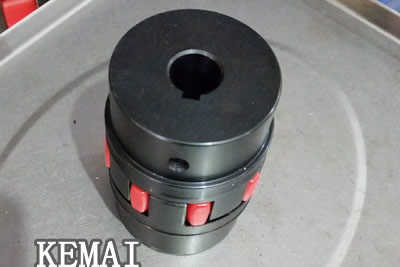

Spider coupling is a flexible shaft coupling,Widely used in gear pump, compressor, generator set. Elastic parts are made of engineering plastics with excellent elasticity and wear resistance.

Operation Temperature: -35~80℃。
Shaft hole range: 6~180mm

Feature

  • Compensate for parallel, angular and axial displacements.
  • Radial dimension small, simple structure, no need of lubrication.
  • For frequent startup，Drive torque:20~25000N.m.
  • Elastic parts long service life of ,great bearing capacity.
  • Usually used for gear asphalt pump,fan,mining,chemical industry.

Spider Coupling Size Chart

Spider Coupling Size Chart
SC Series Spider Coupling Dimension Drawing
Model

Nominal torque

N.M

Speed

rpm

Shaft hole diameter

d1、d2

Shaft hole length

L1、L2

 L0 D D1 D2 E S

Rotational inertia

kg.m^2

 Weight KG

mm mm mm mm mm mm mm
SC1 20 19000 6-19 25 66 40 32 16 2 0.00008 0.30
SC2 70 14000 8-24 30 78 55 40 18 2 0.0002 0.61
SC3 190 11800 10-28 35 90 65 48 20 2.5 0.0007 1.00
SC4 380 9500 12-38 45 114 80 66 24 3 0.002 2.08
SC5 530 8000 14-42 50 126 95 75 26 3 0.004 3.21
SC6 620 7100 15-48 56 140 105 85 28 3.5 0.006 4.41
SC7 750 6300 20-55 65 160 120 98 30 4 0.012 6.64
SC8 850 5600 22-65 75 185 135 115 35 4.5 0.025 10.13
SC9 1950 4750 30-75 85 210 160 135 40 5 0.054 16.03
SC10 4800 3750 40-90 100 245 200 160 45 5.5 0.139 27.50
SC11 6800 3350 50-100 110 270 225 180 50 6 0.245 38.50
SC12 8000 3000 60-110 120 295 255 200 50 6 0.435 54.0
SC13 10000 2650 60-125 140 340 290 230 60 7 0.85 81.8
SC14 14500 2380 60-140 155 375 320 255 65 7.5 1.4 109.7
SC15 20000 2000 80-160 175 425 370 290 75 9 2.72 162.7
SC16 23500 1800 85-180 195 475 420 325 85 10.5 4.95 230.8

Please tell us spider coupling size (diameter of axle hole, length of axle hole) you need.Send it to us:Email:couplings@kemaipump.com
