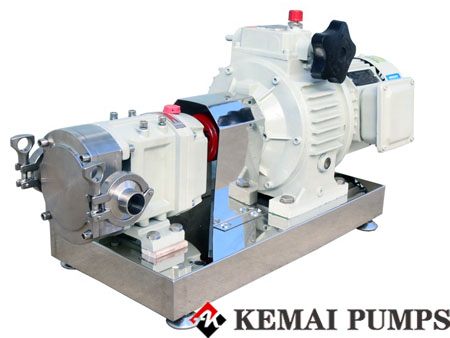

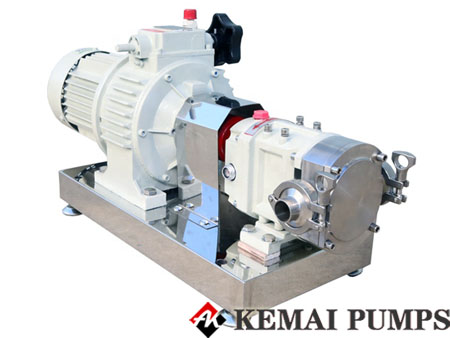

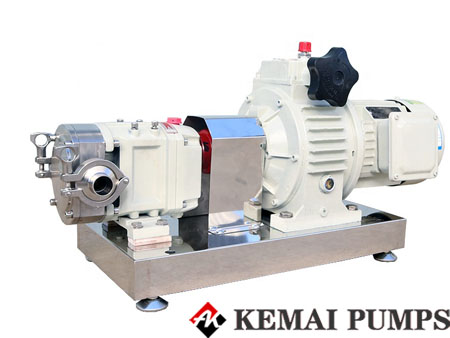

Stepless speed regulation:316L stainless steel food grade sanitary rotary vane pump for beer coffee cola transfer pump
316L stainless steel food grade sanitary rotary vane pump for beer coffee cola transfer pump
316L stainless steel food grade sanitary rotary vane pump for beer
316L stainless steel food grade sanitary rotary vane pump
316L stainless steel food grade sanitary rotary vane pump Application field:
316L stainless steel food grade sanitary rotary vane pump Application Household Chemicals: the SOAP, the SOAP, Toothpaste, Glycerin
Fine Cleaning Chemicals: Fuels, Pigments, Additives, Adhesives
Chemical Fiber: Polyester Fiber, Rayon, Polypropylene Fiber.
Papermaking: Starch Paste, slurry, DEFOAMER.
Coatings: Paints, Inks, Resins.
Food : chocolate, syrup, cream, mayonnaise, jam.
Cosmetics: creams and lotions, hair gels, essential oils.
Pharmaceutical: pills, syrup, extracts, emulsions, pharmaceutical pastes.
|
Product Name: |
TLP Series Hygienic Cam Pumps |
|
Material Science: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
sealing material: |
EPDM (Standard, Approval) |
|
Maximum flow: |
80m3/h |
|
Maximum pressure: |
10bar |
|
Maximum permissible fluid temperature: |
100°C(212°F)/ 200°C(392°F) -water-cooling |
|
Specification of power supply: |
220V,240V,380V,400V,415V,440V 50hz / 60hz |
|
Connection type: |
Fast clamping, flange, thread, SMS, barb, square port |
|
Motor power: |
0.75kw,1.1kw,1.5kw,2.2kw,3kw,4KW,5.5KW,7.5KW,11KW,15KW,22KW |
|
Entry/Exit location: |
Horizontal or vertical |
|
Maximum viscosity: |
1×10 6 CST |
|
Optional criteria: |
DIN,SMS,3A,RJT,ISO / IDF |
|
Scope of application: |
Dairy products, food, beverages, pharmacies, cosmetics, etc. |
|
Maximum diameter: |
125 mm (5 inches) |
|
Rotor type: |
Single leaf, double leaf, three leaf, four leaf, axe head, spiral |
|
Sealing material: |
EPDM (standard, approved) |
|
Sealing options: |
Teflon/hygienic single mechanical seal / double mechanical seal with cooling system |
|
Packaging details: |
Plywood box or custom. Or according to customer requirements |
