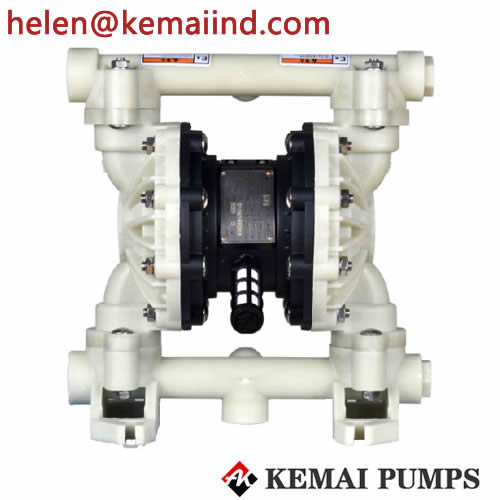

Air Operated Diaphragm Pump Material:PP/PTFE/Cast Steel/Stainless Steel/Aluminum Alloy/PTFE/ SG Iron .
Air Operated Diaphragm Pump Advantages:
- Explosion-proof, zero leak, simple operation.
- Idling capability,Self suction, No complex control.
- Diversity of material,no rotating parts,applicable to various erosive situations.
- Diaphragm, ball and ball seat adopt imported materials with longer service life.
- Modularization of main valve and air motor. No broken, easy to disassemble and repair.
Product Description：
A:Diaphragm Pump is with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
B:No electricity. It’s safe and reliable while in the flammable and explore places.
C:It’s convenient to use and reliable to work. This pump is simple in structure and easy to be installed and maintained.
D:The pump transports various toxin, flammable, volatility strong acid, alkali and corrosive liquid etc.
| Model | Calibre SIZE | Max.Flow(L/min) | Max.Head(M) | Outlet pressure(bar) | Air inlet size |
| AODD-10 | 10 (3/8″) | 22 | 70 | 7 | 1/4″ |
| AODD-15 | 15 (1/2″) | 22 | 70 | 7 | 1/4″ |
| AODD-20 | 20 (3/4″) | 57 | 70 | 7 | 1/4″ |
| AODD-25 | 25 (1″) | 57 | 70 | 7 | 1/4″ |
| AODD-25A | 25 (1″) | 116 | 84 | 8.4 | 1/2″ |
| AODD-32 | 32 (1.2″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40 | 40 (1.5″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40A | 40 (1.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50 | 50 (2″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-65 | 65 (2.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50A | 50 (2″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80 | 80 (3″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-100 | 100 (4″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80A | 80 (3″) | 1041 | 84 | 8.4 | 3/4″ |
| AODD-125 | 125 (5″) | 1041 | 84 | 8.4 | 3/4″ |

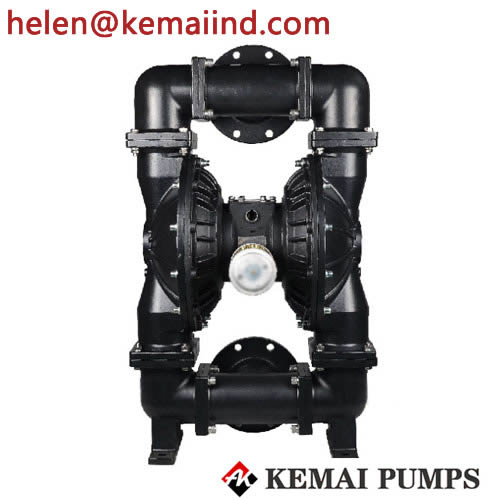

Air Operated Diaphragm Pump
