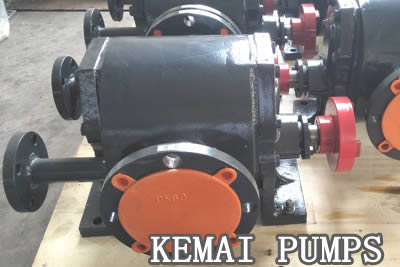

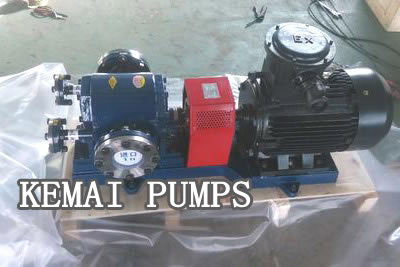

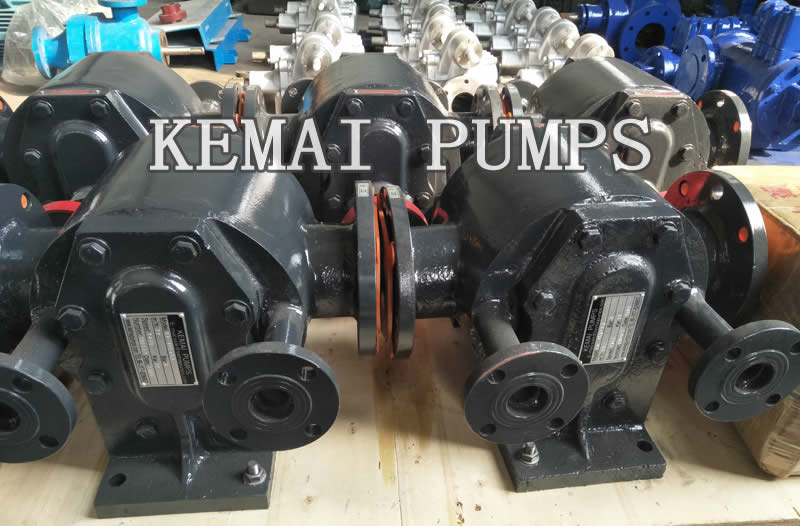

GA series asphalt & bitumen gear pump Applicable temperature less than 380℃，This asphalt gear pump installed with heating jacketed.
Flow:18M3/H and 29M3/H
Flow:38M3/H and 58M3/H

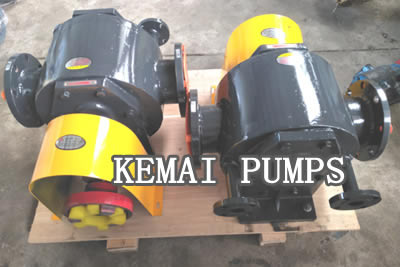

Bitumen Gear pump with heating jacketed GA model introduce
This gear pump use for transfer asphalt (Bitumen)
Flow: 1~150M3/H
Head:0.3~0.4~0.6~1.0MPA
Pump body material:cast steel with jacketed; stainless steel.
Gear and shaft material: alloy steel (good wear-resisting property); stainless steel.
Overall carbon steel with heat insulation sleeve insulation asphalt pump is equipped with the hollow interlayer on all the main flow of parts and is available for steam, hot water, heat conduction oil and pump for conveying liquid such as heating, heat preservation, and other functions, when conveying viscosity larger should use reducer, speed regulating motor or pulley drive way, reduce the pump speed.
Asphalt Gear pump with heating jacketed GA model Data
GA series gear bitumen pump also be made of stainless steel to transfer the solidified oil (animal oil, vegetable oil, etc.) at room temperature.
|
Type |
Caliber mm |
Flow |
Discharge pressure Mpa |
Speed r/min |
With motor |
|
|
L/min |
KW |
Motor type |
||||
|
GA-33/0.6 |
25 |
33 |
0.6 |
1000 |
1.5 |
Y100L-6 |
|
GA-50/0.6 |
25 |
50 |
0.6 |
1500 |
2.2 |
Y100L-4 |
|
GA-80/0.6 |
40 |
80 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-125/0.6 |
40 |
125 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-125/0.6 |
50 |
125 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-200/0.6 |
50 |
200 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-300/0.6 |
80 |
300 |
0.6 |
1000 |
7.5 |
160M-6 |
|
GA-300/0.4 |
80 |
300 |
0.4 |
1000 |
5.5 |
132M-6 |
|
GA-480/0.4 |
80 |
480 |
0.4 |
1500 |
7.5 |
132M-4 |
|
GA-480/0.6 |
80 |
480 |
0.6 |
1500 |
11 |
160M-4 |
|
GA-630/0.4 |
100 |
630 |
0.4 |
1000 |
11 |
160L-6 |
|
GA-960/0.4 |
100 |
960 |
0.4 |
1500 |
18.5 |
180M-4 |
|
GA-1360/0.6 |
150 |
1360 |
0.6 |
960 |
37 |
250M-6 |
|
GA-1800/0.6 |
200 |
1800 |
0.6 |
720 |
55 |
315S-8 |
|
GA-2500/0.6 |
200 |
2500 |
0.6 |
960 |
75 |
315S-6 |
