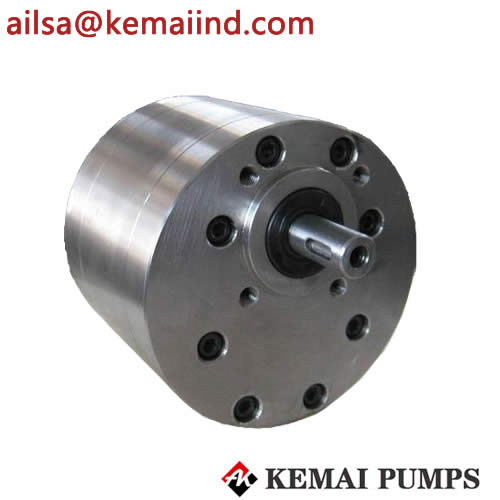

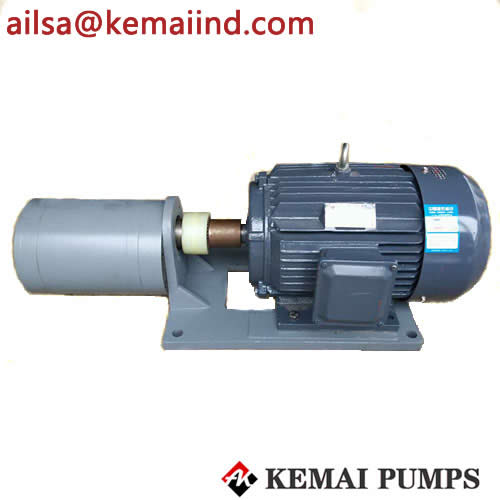

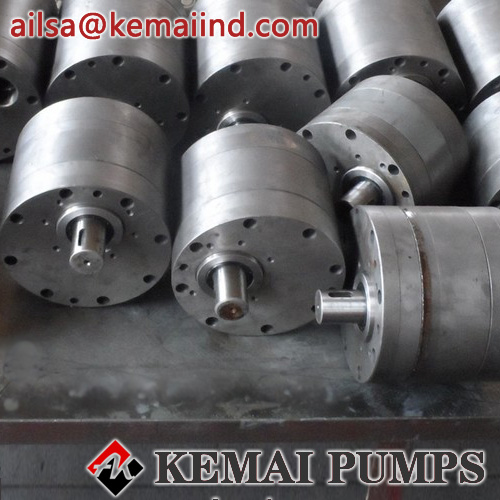

CB-B Gear Pump

CB-B Gear Pump oil pump features beautiful appearance, convenient maintenance, large flow and low noise from helical gears.

•

•

•

CB-B Gear Pump Outline drawing:

Technical Data:

CB-B gear pump model	Rated flow L/min	Rated pressure MPa	Rated Speedr/min	Efficiencyηv%	General Efficiencyηt%	Motor power KW
CB-B160	160	2.5	1450	≥90	≥80	8.2
CB-B200	200	2.5	1450	≥90	≥80	10.1
CB-B250	250	2.5	1450	≥90	≥80	13
CB-B300	300	2.5	1450	≥90	≥80	15
CB-B350	350	2.5	1450	≥90	≥80	17
CB-B400	400	2.5	1450	≥90	≥80	20
CB-B500	500	2.5	1450	≥90	≥80	24
CB-B550	550	2.5	1450	≥90	≥80	28
CB-B600	600	2.5	1450	≥90	≥80	30

Technical Size:

Model	CB-B160	CB-B200	CB-B250	CB-B300	CB-B350	CB-B400	CB-B500	CB-B550	CB-B600
H	196	210	228	245	263	280	316	335	350

Note: 1. Cb-b500, cb-b550 and cb-b600 gear oil pump outlet is Z2 “.
2. There are two types of user mounting holes (4-m8) and (6-m8).
