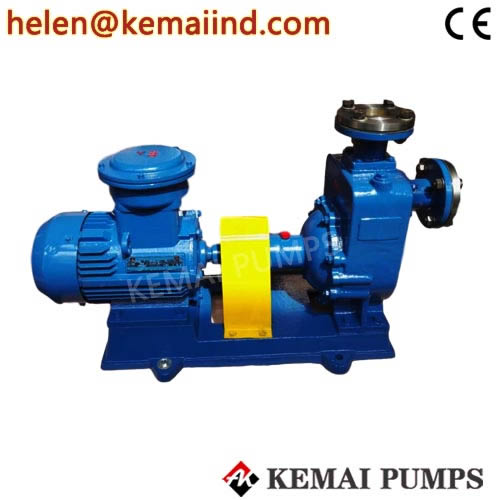

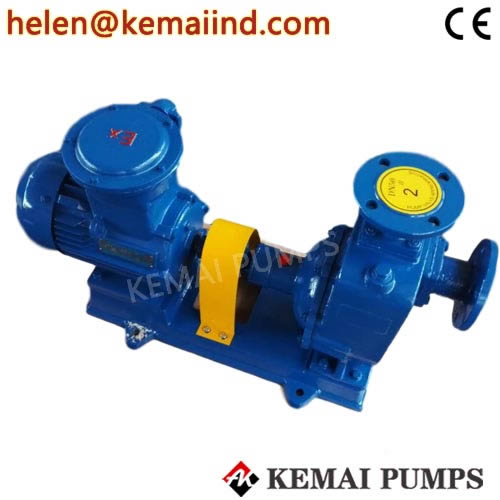

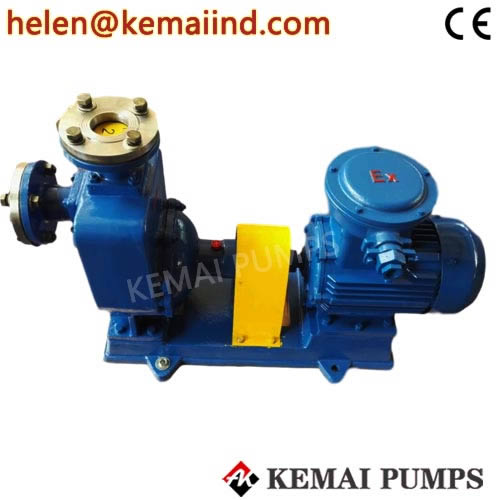

Centrifugal Pump For Gasoline transfer pump whichis used to transport oil products such as gasoline, diesel , kerosene, jet fuel, is a kind of good cargo oil pump
Gasoline transfer pump Use:
CYB self priming pump is suitable for the oil industry, land-based oil depots, tanker as bilge pumps, fire pumps and ballast pumps and cooling water circulation pumps, to transport gasoline, respectively, , kerosene, diesel, jet fuel and other petroleum products and water, sea water, medium temperature -20 º C -80 º C.
Whichis used to transport oil products such as gasoline, diesel , kerosene, jet fuel, is a kind of good cargo oil pump, and is suitable for the oil , fuel oil transportation. For land, the pump can also be used to transport sea water, fresh water, etc. After the change with corrosion resistant mechanical seal, it can handle chemical.
Gasoline transfer pump CYB-S Model instructions:
The pump is composed of suction room store liquid room vortex room, liquid returning hole, gas adn liquid dividing roon etc. The pumps adopt the single row radial bal l bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.
Centrifugal Pump For Gasoline Transfer Pump Parameter :
| Model | Power (kw) | Rotation (rpm) | Capacity (m3/h) | Head (m) | Self – Priming Lift(m) |
| 25CYB-S-20 | 1.5 | 2900 | 3.2 | 20 | 5 |
| 25CYB-S-32 | 1.5 | 2900 | 3.2 | 32 | 5 |
| 32CYB-S-20 | 3 | 2900 | 3.2 | 50 | 5 |
| 40CYB-S-20 | 1.5 | 2900 | 6.3 | 20 | 5 |
| 40CYB-S-32 | 2.2 | 2900 | 6.3 | 32 | 5 |
| 40CYB-S-40 | 4 | 2900 | 10 | 40 | 5 |
| 40CYB-S-50 | 4 | 2900 | 6.3 | 50 | 5 |
| 50CYB-S-12 | 1.5 | 2900 | 12.5 | 12 | 5 |
| 50CYB-S-20 | 2.2 | 2900 | 15 | 20 | 5 |
| 50CYB-S-30 | 3 | 2900 | 12.5 | 30 | 5 |
| 50CYB-S-35 | 4 | 2900 | 12.5 | 35 | 5 |
| 50CYB-S-40 | 4 | 2900 | 10 | 40 | 5 |
| 50CYB-S-50 | 5.5 | 2900 | 12.5 | 50 | 5 |
| 50CYB-S-60 | 7.5 | 2900 | 12.5 | 60 | 5 |
| 50CYB-S-75 | 11 | 2900 | 15 | 75 | 5 |
| 65CYB-S-15 | 3 | 2900 | 30 | 15 | 4 |
| 65CYB-S-32 | 5.5 | 2900 | 25 | 32 | 5 |
| 65CYB-S-50 | 7.5 | 2900 | 25 | 50 | 5 |
| 65CYB-S75 | 18.5 | 2900 | 25 | 75 | 5 |
| 80CYB-S-13 | 3 | 2900 | 35 | 13 | 4 |
| 80CYB-S-17 | 4 | 2900 | 43 | 17 | 4 |
| 80CYB-S-22 | 5.5 | 2900 | 40 | 22 | 4 |
| 80CYB-S-25 | 7.5 | 2900 | 50 | 25 | 4 |
| 80CYB-S-32 | 7.5 | 2900 | 50 | 32 | 4 |
| 80CYB-S-40 | 11 | 2900 | 50 | 40 | 4 |
| 80CYB-S-55 | 18.5 | 2900 | 60 | 55 | 4.5 |
| 80CYB-S-70 | 22 | 2900 | 60 | 70 | 4.5 |
| 100CYB-S-20 | 11 | 2900 | 100 | 20 | 3.5 |
| 100CYB-S-40 | 22 | 2900 | 100 | 40 | 4.5 |
| 100CYB-S-65 | 30 | 2900 | 100 | 65 | 4.5 |
| 100CYB-S-80 | 30 | 2900 | 70 | 80 | 4.5 |
| 150CYB-S-45 | 37 | 2900 | 170 | 45 | 4.5 |
| 150CYB-S-55 | 45 | 2900 | 160 | 55 | 4.5 |
| 150CYB-S-65 | 55 | 2900 | 170 | 65 | 4.5 |
| 150CYB-S-80 | 55 | 2900 | 160 | 80 | 4.5 |
| 200CYB-S-32 | 55 | 1450 | 400 | 32 | 4.5 |
| 200CYB-S-63 | 90 | 1450 | 280 | 63 | 4.5 |
| 200CYB-S-65 | 110 | 1450 | 350 | 65 | 4.5 |
| 250CYB-S-32 | 75 | 1450 | 550 | 32 | 4.5 |
| 250CYB-S-50 | 90 | 1450 | 400 | 50 | 4.5 |
| 300CYB-S-32 | 90 | 1450 | 600 | 32 | 4.5 |
| 300CYB-S-50 | 110 | 1450 | 500 | 50 | 4.5 |
