Can control speed stainless steel honey ice cream pump health food rotary cam pump

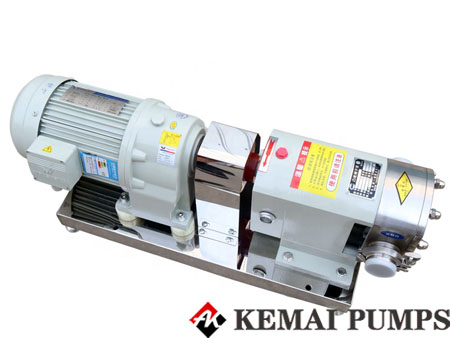

Fixed speed Food Rotary Cam Pump
Fixed speed Cam Pump

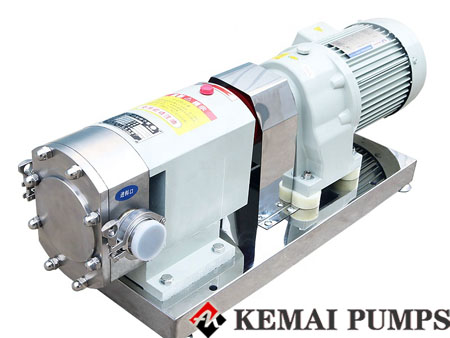

Control Speed Food Rotary Cam Pump
Food Rotary Cam Pump Product Description:
A rotary lobe pump is a positive displacement pump with two rotors in the pump head. The two rotors are fixed to the two shafts and rotate synchronously in the opposite direction. The rotation creates a vacuum volume on the inlet side. The liquid is drawn into the pump head and travels in the chamber between the rotor and the pump head housing and is extruded on the outlet side. The pump has a wide range of viscosity suitability. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient pump operation and preheating. The Food Rotary Cam Pump features a multi-style seal for reliable performance and long life. It is an ideal conveying equipment for food, pharmaceutical, chemical, oil, daily life and so on.
Performance overview:
|
MODEL |
DISPLACEMET LITER/REV |
NOMLNAL LONNECTION SIZE |
DIFFERENTIAL PRESSURE RATING BAR |
MAXIMUM PUMP SPEED RPM |
INPUT SHAFT DIAMETER (MM) |
MAXIMUM TORQUE N-M |
|
TLP-6 |
0.06 |
25（1″） |
10 |
960 |
19 |
108 |
|
TLP-9 |
0.09 |
32（1.2″） |
10 |
960 |
19 |
108 |
|
TLP-18 |
0.18 |
40（1.5″） |
10 |
960 |
21 |
166 |
|
TLP-36 |
0.36 |
50（2″） |
10 |
720 |
28 |
244 |
|
TLP-60 |
0.6 |
65（2.5″） |
10 |
720 |
38 |
444 |
|
TLP-135 |
1.35 |
80（3″） |
10 |
600 |
48 |
832 |
|
TLP-250 |
2.5 |
100（4″） |
10 |
600 |
60 |
1665 |
|
TLP-535 |
5.35 |
150（6″） |
10 |
400 |
75 |
2800 |
|
TLP-700 |
7 |
150（6″） |
10 |
400 |
75 |
3200 |
