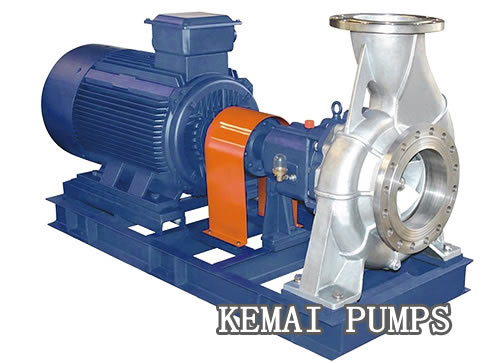

CZ series chemical centrifugal pump are horizontal, single-stage, single-suction centrifugal pumps.The size and performance are in accordance with DIN24256/ISO2858. The performance range of CZ series standard chemical pumps includes all the performances of IH series standard chemical pumps, and its efficiency, cavitation performance and other indicators exceed IH type pumps.
Use
Transport low temperature or high temperature liquids; neutral or corrosive liquids; clean or liquids containing solid particles. Particularly suitable for: chemical and petrochemical industries; refineries; paper mills and pulp industry; grain industry.
CZ chemical centrifugal pump performance parameters
Flow: 3.2~2000m3/h.
Head: 7~160m.Speed: 2900r/min、1450r/min.
Caliber: 32~300m.
Working temperature: -80℃~+300℃.
Working pressure: 2.5MPa.

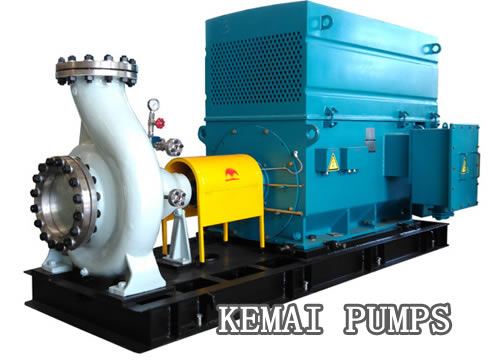

CZ chemical pump design features
The pressure acting on the shaft seal is balanced by the balance holes on the blade or impeller. The shaft seal can be sealed with a soft seal (can be cooled or not), or a single or double-end unbalanced mechanical seal of various structures can be used. The ball bearings are durable and have ample shaft diameter for smooth operation.
Part of the pump body is designed as a double-screw housing to balance radial forces. The bearing frame, including the shaft, the impeller, the stuffing box, etc., forms a combined component so that the pump body does not have to be removed from the pipeline during maintenance (if the extension coupling is used, the motor does not have to be removed). Flange design, using PN16, PN25 (depending on the difference in materials).
CZ centrifugal pump conveying medium
Inorganic and organic acids such as sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid at various temperatures and concentrations. An alkaline solution such as sodium hydroxide and sodium carbonate at various temperatures and concentrations.
Various salt solutions. Various liquid petrochemical products, organic compounds, and other corrosive materials and products. At present, our company’s corrosion-resistant materials can meet the requirements of the above various media. When ordering, please provide the details of the medium to be delivered.
