Diesel Engine Drive Gear Pump KCB/2CY Model transfer Olive Oil,Crude Oil,Diesel Oil,light fuel oils,vegetable oil,motor oil.

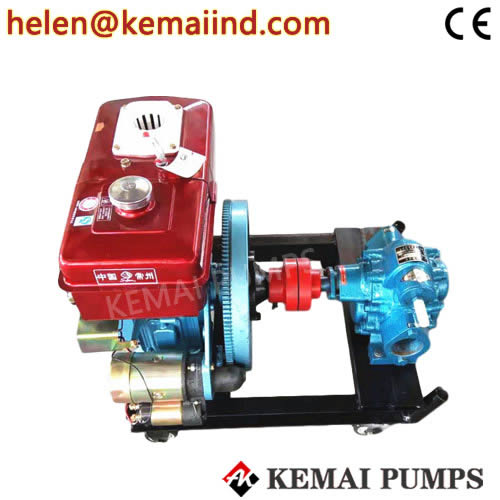

Diesel Engine Drive Gear Pump KCB Model

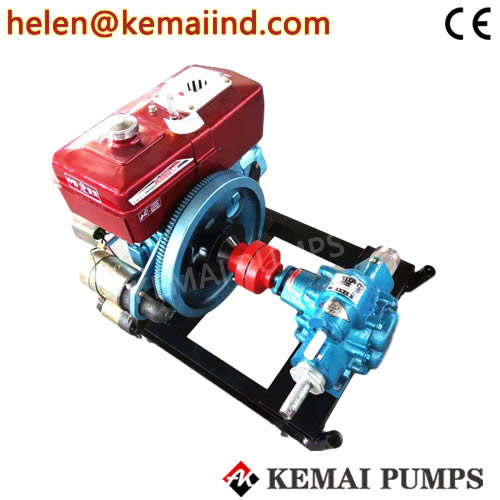

Diesel Engine Drive Gear Pump KCB Model Manufacturer

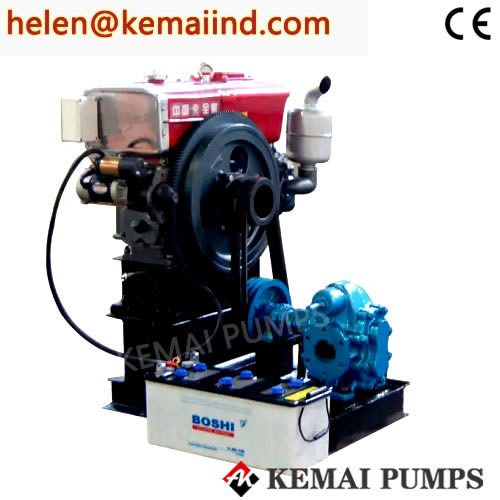

Diesel Engine Drive Gear Pump KCB Model Supplier
Diesel Engine Drive Gear Pump KCB/2CY Summarize:
They are widely used in oil reservoirs, piers, ships, mining sites, factories and farms. The series 2CY gear oil pumps are mainly used for transporting viscous lubricants for mechanical equipment. When equipped with stainless steel gears, the pumps can pump cooking oils or beverages
- KCB Electric Hydraulic Gear Oil Pump Transfer Waste Oil, Olive Oil, Crude Oil, Diesel Oil is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol.
- It is helical gear pump, and built-in by-pass valve. For pumping clean viscous liquids, not containing abrasive or solid particles.
- They can run dry for only intermediate amounts of time, allowing for the use of a suction hose for collecting fluids from a tank. They should not be run dry for an extended period of time as oil is required to lubricate the pump head.
Diesel Engine Drive Gear Pump Model Generally used in:
The series KCB/2CY gear pump possess the advantages of simple and compact structure, easy operation and simple maintenance. The series KCB gear oil pumps are suitbble for transporting various oils such as petroleum, diesel and lubricant oils. When using copper gears, the pumps can converfluids with low flash points such as gasoline and benzene ate temperature below 70º C.
Gear Pump KCB/2CY Product details:
| Working Principle: | Double Gears |
| Pump body material: | Cast Iron, SS304, SS316 |
| Gear material: | #45 Steel, Copper, SS304, SS316 |
| Temperature range: | Normal ≤ 70 C, Special ≤ 300 C |
| Driver: | Motor engine, diesel engine |
| Power specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max flow rate: | 9600 L/min |
| Max discharge pressure: | 1.45MPa |
| Type of connection: | Quick couple, Thread, Flange |
| Shaft seal type: | Oil seal, Mechanical seal, Graphite seal |
| Sliding bearing: | Good aseismic performance |
| Helical Gear: | Good meshing performance, steady transmisson of gear reduce noise. |
