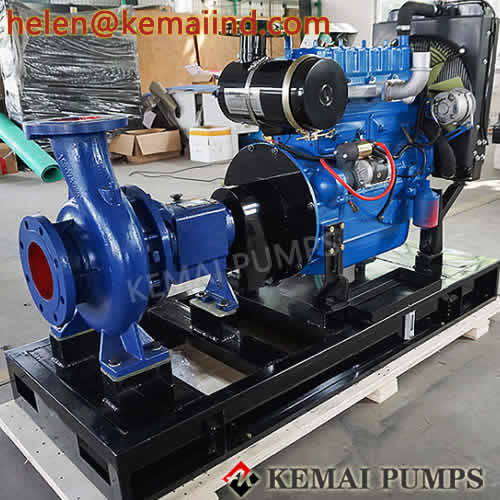

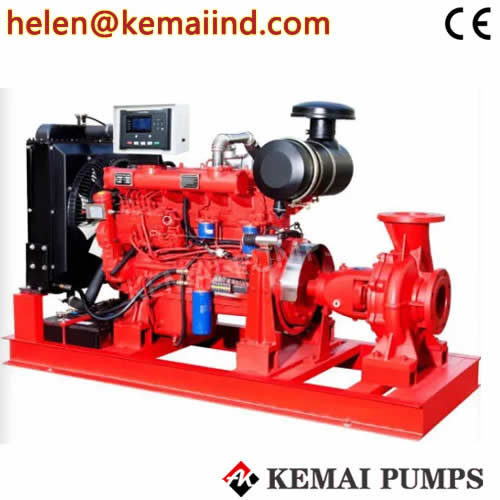

Diesel Engine Driven Water Pump for Mining Use

Diesel Engine Driven Water Pump for Mining Use Be used for industrial and urban water supplying, drainaging, also for agricultural irrigation.

•

•

•

Diesel Engine Driven Water Pump Summarize:

Diesel Engine Driven Water multistage centrifugal pumps Be used for industrial and urban water supplying, drainaging, also for agricultural irrigation.
Can delivery water or liquid that physical and chemical similar to water.
Liquid temperature shall not higher than 80 ºC, suction pressure not more than 0.3 Mpa.
Normally shaft seal is packing seal, mechanical seals is available for choice.

1.IR Single stage end suction HOT WATER centrifugal pump
2.Be used in metallurgy, textile, chemical, printing & dyeing and other industrial field
3.Can delivery liquid with solid impurities that volume contain no more than 0.1% and particle size not bigger than 0.2mm.
4.Liquid temperature shall not higher than 150ºC, suction pressure not more than 0.4Mpa.
5.Shaft seal is water cooling mechanical seal.

Water centrifugal Pump Usage:

1.Cleanout system.
2.Every series of food machining and medicine produce.
3.Environment protect system.
4.Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
5.Electroplate and Dyeing system.
6.Industrial and chemical sump treatment.
7.Explosion proof motor for oil, alcohol and other explosive liquid.

Model             inlet-outlet-impeller	Capacity	Head	Power	Effeciency
(mm)(mm)(mm)	(m3/h)	(m)	(kW)	(%)
50-32-125	12.5	20	2.2	60
50-32-125	6.3	5	0.55	54
50-32-160	12.5	32	3	54
50-32-160	6.3	8	0.55	48
50-32-200	12.5	50	5.5	48
50-32-200	6.3	12.5	0.75	42
50-32-250	12.5	80	11	38
50-32-250	6.3	20	1.5	32
65-50-125	25	20	3	69
65-50-125	12.5	50	0.55	64
65-50-160	25	32	0.5	65
65-50-160	12.5	5	0.75	60
65-40-200	25	50	7.5	60
65-40-200	12.5	12.5	1.1	55
65-40-250	25	80	15	50
65-40-250	12.5	20	2.2	46
80-65-125	50	20	5.5	75
80-65-125	25	5	0.75	71
80-65-160	50	32	7.5	73
80-65-160	25	8	1.5	69
8050-200	50	50	15	69
80-50-200	25	12.5	2.2	65
80-50-250	50	80	22	63
80-50-250	25	20	3	60
80-50-315	50	125	37	54
80-50-315	25	32	5.5	52
100-80-125	100	20	11	78
100-80-125	50	5	1.5	75
100-80-160	100	32	15	78
100-80-160	50	8	2.2	75
100-65-200	100	50	22	76
100-65-200	50	12.5	4	73
100-65-250	100	80	37	72
100-65-250	50	20	5.5	69
100-65-315	100	125	75	66
100-65-315	50	32	11	63
125-100-200	200	50	45	81
125-100-200	100	12.5	7.5	76
125-100-250	200	80	75	78
125-100-250	100	20	11	76
125-100-315	100	32	15	73
125-100-400	100	50	30	65
150-125-250	200	20	18.5	81
150-125-315	200	32	30	79
200-150-250	400	20	37	79
200-150-315	400	32	45	79
200-150-400	400	50	75	77
