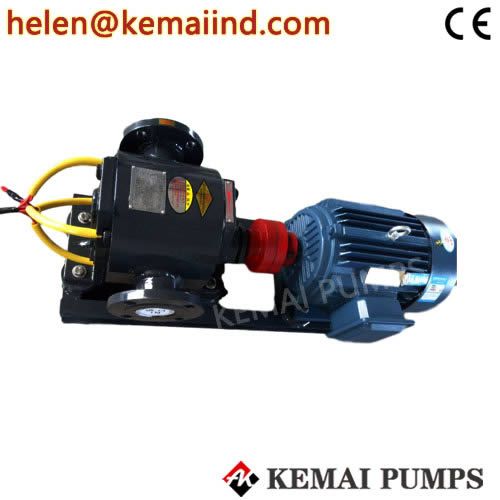

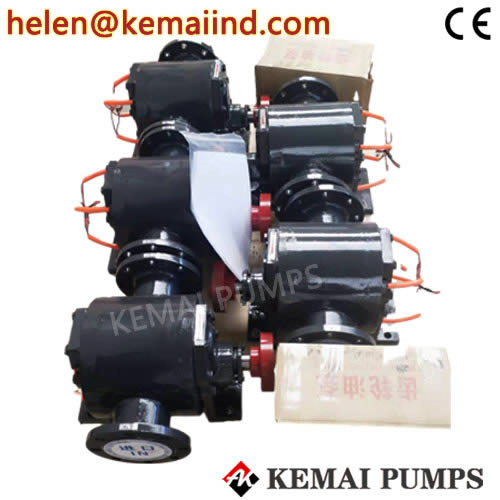

Electrical Heating Bitumen Gear Pump Model Flow:2m3/h~112m3/h Max. pressure:0.4Mpa~0.8Mpa Material:Cast Steel. High temperature resistance:350℃.107 Glue Syrup Asphalt Tackifier Resin Cleanser.
Electrical Heating Gear Pump Application:
Glue It is an intermediate connecting two kinds of materials, most of which appear as water agent. It belongs to fine chemical industry, and there are many kinds of it. It is mainly classified by adhesive, physical form, hardening method and material of adhesive.
Gear Pump For Glue With Jacket Model Flow:2m3/h~112m3/h Max. pressure:0.4Mpa~0.8Mpa Gear Pump For Asphalt Material:Cast Steel. High temperature resistance:350℃
Electrical Heating Bitumen Gear Pump Characteristic:
1)Asphalt Pump Simple and compact structure, easy to install and use.
2)With good self-priming performance, do not have to add liquid before each pump, especially convenient to use.

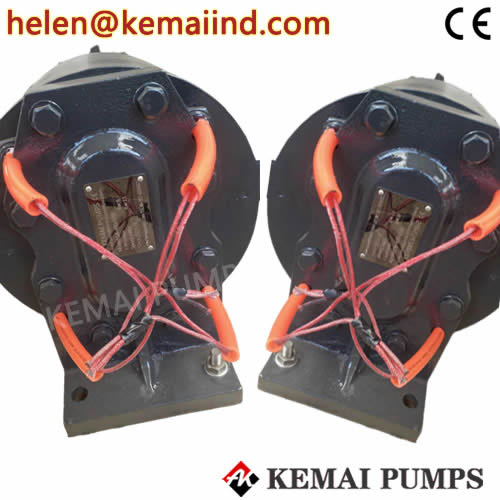

3)The heating tube is connected with standard flange, the sealing surface is easy to connect and the sealing is reliable.
|
Type |
Caliber mm |
Flow |
Discharge pressure Mpa |
Speed r/min |
With motor |
|
|
L/min |
KW |
Motor type |
||||
|
GA-33/0.6 |
25 |
33 |
0.6 |
1000 |
1.5 |
Y100L-6 |
|
GA-50/0.6 |
25 |
50 |
0.6 |
1500 |
2.2 |
Y100L-4 |
|
GA-80/0.6 |
40 |
80 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-125/0.6 |
40 |
125 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-125/0.6 |
50 |
125 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-200/0.6 |
50 |
200 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-300/0.6 |
80 |
300 |
0.6 |
1000 |
7.5 |
160M-6 |
|
GA-300/0.4 |
80 |
300 |
0.4 |
1000 |
5.5 |
132M-6 |
|
GA-300/0.8 |
80 |
300 |
0.8 |
1000 |
11 |
160M-4 |
|
GA-480/0.4 |
80 |
480 |
0.4 |
1500 |
7.5 |
132M-4 |
|
GA-480/0.6 |
80 |
480 |
0.6 |
1500 |
11 |
160M-4 |
|
GA-480/0.8 |
80 |
480 |
0.8 |
1500 |
15 |
160L-4 |
|
GA-630/0.4 |
100 |
630 |
0.4 |
1000 |
11 |
160L-6 |
|
GA-630/0.8 |
100 |
630 |
0.8 |
1000 |
18.5 |
200L1-6 |
|
GA-960/0.6 |
100 |
960 |
0.6 |
1500 |
22 |
180M-4 |
|
GA-1000/0.6 |
150 |
1000 |
0.6 |
720 |
37 |
280S-8 |
|
GA-1360/0.6 |
150 |
1360 |
0.6 |
960 |
45 |
250M-6 |
|
GA-1800/0.6 |
200 |
1800 |
0.6 |
720 |
55 |
315S-8 |
|
GA-2500/0.6 |
200 |
2500 |
0.6 |
960 |
75 |
315S-6 |
