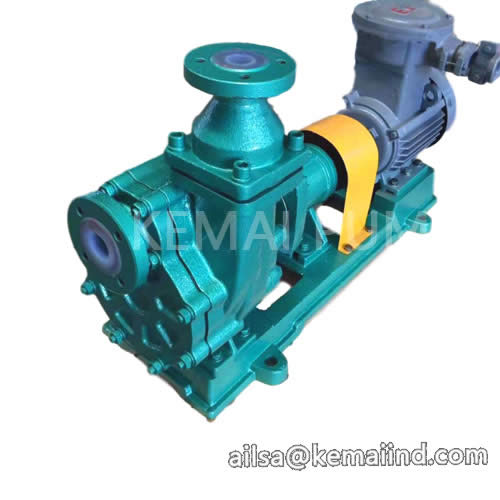

FZB&ZBF Self Priming Centrifugal Pump: The product adopts external mixed self-imbibition structure.The pump body is lined with fluoroplastic with metal shell, good wear resistance, corrosion resistance, very good seal! Type: 25FZB，40ZBF, 50FZB, 65ZBF, 80FZB, 100ZBF;
Traffic: 3.6m3/h,8m3/h,12m3/h,25 m3/h ,50m3/h,100m3/h;18m,20m,30m,45m;
Revolution: 2900r/min.
FZB&ZBF Self Priming Centrifugal Pump Overview:
FZB&ZBF series fluoroplastic self-priming pump adopts external mixed self-priming structure. When the pump is started for the first time, the body is filled with liquid, and then it is started frequently, so there is no need for water injection to exhaust vacuum.Self-priming pump body adopts metal case lined with fluoroplastic contact medium components are all made of fluoroplastic alloy, pump cover, impeller, fluorine plastic with metal insert outsourcing whole sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static choose 99.9% alumina or silicon carbide rings, ring with four fluorine filling materials, its excellent corrosion resistant seal.
FZB&ZBF Self Priming Centrifugal Pump Advantages:
Corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, easy disassembly and maintenance, long service life and other advantages.Can be used in a certain range to replace the liquid pump.The imbibition height can be determined within 1 to 5 meters according to the medium density.
FZB&ZBF Self Priming Centrifugal Pump Application Range:
Corrosive medium conveying, chlorine water waste water treatment and adding acid process, electrolyte transport, pickling process, pharmaceutical, oil, electric power, electroplating, dye, pesticide, papermaking, food, textile, and many other industries, conveying any concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid and aqua regia, strong alkali, strong oxidizing agents, organic solvents, strong corrosive medium, such as reducing agent is one of the most wide usability van pump equipment.
FZB&ZBF Self Priming Centrifugal Pump Performance Parameters:
| Type | Flow m3/h | Headm | Inlet mm | Outlet mm | Cavitation allowancem | Speed r/min | Motor power KW |
| 25ZBF(FZB)-20L | 3.6 | 18 | 25 | 25 | 3.0 | 2900 | 2.2 |
| 40ZBF(FZB)-20L | 8 | 20 | 40 | 50 | 3.0 | 2900 | 3 |
| 40ZBF(FZB)-30L | 8 | 30 | 40 | 50 | 3.5 | 2900 | 4 |
| 50ZBF(FZB)-20L | 12 | 20 | 50 | 50 | 3.0 | 2900 | 3 |
| 50ZBF(FZB)-30L | 12 | 30 | 50 | 50 | 3.5 | 2900 | 4 |
| 50ZBF(FZB)-45L | 12 | 45 | 50 | 32 | 3.5 | 2900 | 7.5 |
| 65ZBF(FZB)-30L | 25 | 30 | 65 | 50 | 4.0 | 2900 | 7.5 |
| 65ZBF(FZB)-45L | 25 | 45 | 65 | 40 | 4.0 | 2900 | 11 |
| 80ZBF(FZB)-30L | 50 | 30 | 80 | 65 | 4.5 | 2900 | 11 |
| 80ZBF(FZB)-45L | 50 | 45 | 80 | 65 | 4.5 | 2900 | 15 |
| 100ZBF(FZB)-30L | 100 | 30 | 100 | 80 | 6.0 | 2900 | 18.5 |
| 100ZBF(FZB)-45L | 100 | 45 | 100 | 80 | 6.0 | 2900 | 30 |
