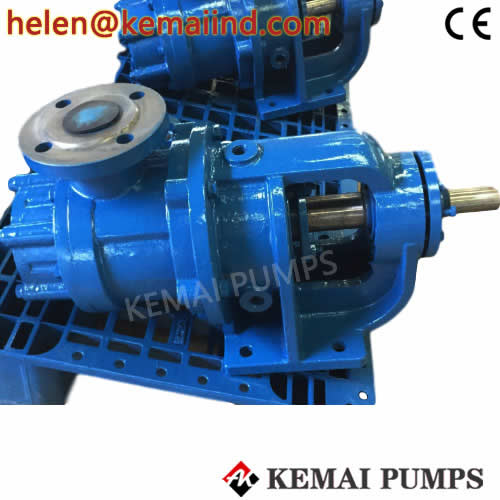

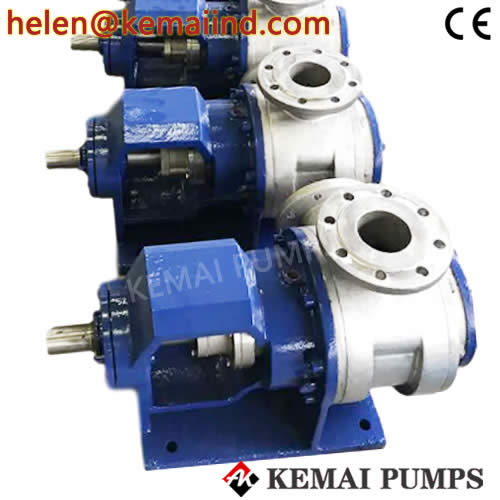

Gear Pump For High Viscosity Oil NYP Model Application:
Proper medium temperature: -10 centrigrade~200 centrigrade.
Proper medium viscosity: 1.0cSt~300, 000cSt

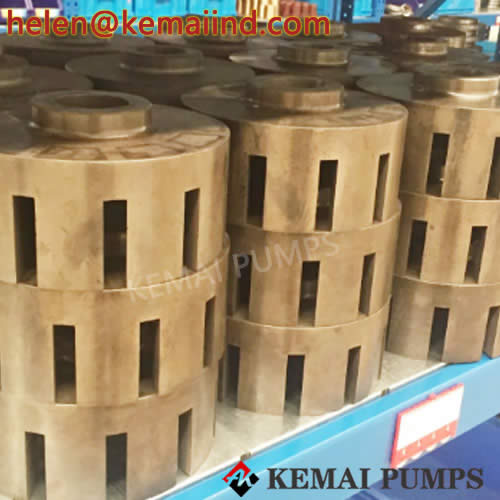

NYP Gear Pump are mainly composed of internal rotor,outside rotor,shaft,pump casing,front cover,seal,bearing etc.
The pump’seal adopts packing seal or mechanical seal.When the delivered medium is high temperature,high viscosity or strong corrosion,packing seal should be adopted.
The pump set is composed of the pump,motor and baseplate.
The driving way is belt wheel driving or coupling driving.
Gear Pump For High Viscosity Oil With Jacket :
When the delivered medium is easy crystallinic ,we can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working.The pump can be also fitted with the safty valve.
Model | Viscosity Cst | Speed R/min | Capacity M3/h | Pressure Mpa | Inlet/outlet Mm | Power Kw |
NYP0.78 | 2000/600 | 910/1390 | 0.4/0.6 | 0.8-1.0 | 15″ | 0.75 |
NYP2.3 | 2000/600 | 910/1390 | 1/2 | 0.8-1.0 | 25″ | 1.1/1.5 |
NYP3.6 | 600/2000 | 940/640 | 2/1.5 | 0.8-1.0 | 40″ | 1.5 |
NYP7.0 | 2000/6000 | 960/500-640 | 4/2.3 | 0.8-1.0 | 40″ | 2.2/3 |
NYP24 | 2000/6000 | 357-475/300 | 5-6.5/4 | 0.8-1.0 | 50″ | 5.5 |
NYP50 | 2000/6000 | 357-475/300 | 10-14/9 | 0.8-1.0 | 50″ | 7.5/5.5 |
NYP80 | 2000/6000 | 315-417/228 | 15-20/10 | 0.8-1.0 | 80″ | 15/11 |
NYP110 | 2000/6000 | 315-417/228 | 20-28/15 | 0.8-1.0 | 80″ | 18.5/15 |
NYP160 | 2000/6000 | 320-420/320 | 30-40/30 | 0.8-1.0 | 100″ | 18.5 |
NYP220 | 2000/6000 | 220-285/160 | 30-40/20 | 0.8-1.0 | 100″ | 37/18.5 |
NYP320 | 2000/6000 | 220-285/160 | 40-50/30 | 0.8-1.0 | 100″ | 37/22 |
NYP650 | 2000/6000 | 160-240/120 | 60-90/45 | 0.8-1.0 | 125″ | 55/37 |
NYP730 | 2000/6000 | 160-240/120 | 70-100/50 | 0.8-1.0 | 150″ | 55/37 |
NYP1670 | 2000 | 160 | 160 | 0.8-1.0 | 200″ | 100 |
NYP1670 | 6000 | 200 | 200 | 0.8-1.0 | 200″ | 132 |
