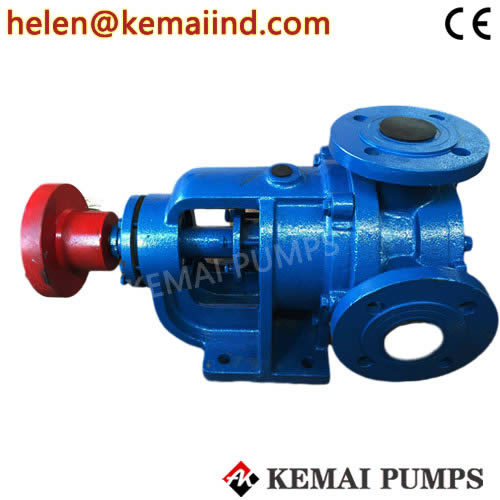

Gear Pump for PU (Polyurethane) NYP Model:NYP0.78 NYP2.3 NYP3.6 NYP7.0 NYP3 NYP24 NYP52 NYP10 NYP80 NYP111 NYP160 NYP220 NYP320 NYP650 NYP727 NYP1670.
Gear Pump for PU (Polyurethane) NYP Model Application:
Gear Pump for PU (Polyurethane) NYP Model Flow:0.6m3/h~130m3/h
Proper medium temperature: -10 centrigrade~200 centrigrade.
Proper medium viscosity: 1.0cSt~300, 000cSt
Max. pressure:1.0Mpa
Gear Pump for PU (Polyurethane) NYP Model is a kind of new positive displacement pump,and is designed according to the different fields’ requirements of petroleum ,chemical industry ,paint ,medicine ,foodstuff and so on.It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pump’s materials.
Gear Pump for PU (Polyurethane) NYP Model With Jacket:
When the delivered medium is easy crystallinic ,we can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working.The pump can be also fitted with the safty valve.

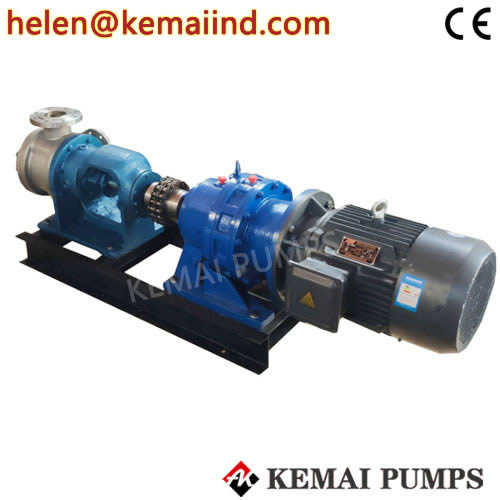

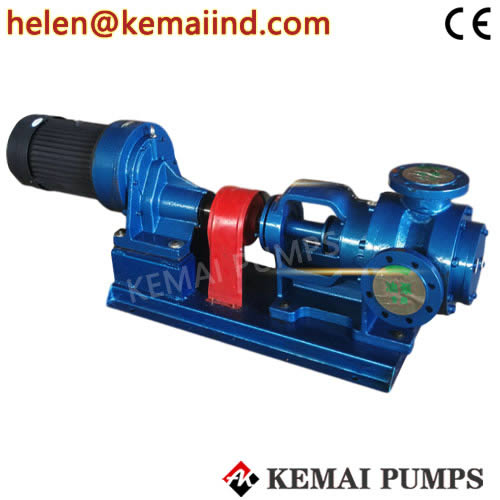

Gear Pump for PU (Polyurethane) NYP Model pump set is composed of the pump,motor and baseplate.
The driving way is belt wheel driving or coupling driving.
1)Steady edlivery without pulsation, little vibration and noise.
2)Outstanding self-priming abitity.
3)The pump can deliver the varied corrosion mediums if the proper material of poarts selected. In addition.
4)The same rotary direction of internal rotor and outside rotor results in little wear and long loperation life.
5)The pump’s flow capacity can be changed through adjusting the speed.
6)It’s specilly suited to deliver high visc medium.
