Gear Pump With Jacket NYP Model It can also for Bitumen,Asphalt,Glue,107 Glue,Syrup,Asphalt,Tackifier,Resin,Cleanser,PA PB PC PE PS HIPS ABS PP PET PVA and other high temperature,high viscosity polymer melt materials.

  • Gear Pump With Jacket NYP Model Supplier
  • Gear Pump With Jacket NYP Model
  • Gear Pump With Jacket NYP Model Manufacturer

Gear Pump With Jacket NYP Model Application:

Proper medium temperature: -10 centrigrade~200 centrigrade.
Proper medium viscosity: 1.0cSt~300, 000cSt
Especially suitable for high viscosity medium transport.
Jacket and pump body casting into one, good insulation effect, can avoid various problems caused by welding jacket.
Heating: heat preservation can be carried out by passing various heat media such as hot steam and heat conduction oil into the jacket cavity.
Cooling: through a variety of coolant, the pump body can be maintained at a constant temperature.

Gear Pump With Jacket :

Gear Pump With Jacket when the delivered medium is easy crystallinic ,we can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working.The pump can be also fitted with the safty valve.

ModelViscosity
Cst		Speed
R/min		Capacity
M3/h		Pressure
Mpa		Inlet/outlet
Mm		Power
Kw
NYP0.782000/600910/13900.4/0.60.8-1.015″0.75
NYP2.32000/600910/13901/20.8-1.025″1.1/1.5
NYP3.6600/2000940/6402/1.50.8-1.040″1.5
NYP7.02000/6000960/500-6404/2.30.8-1.040″2.2/3
NYP242000/6000357-475/3005-6.5/40.8-1.050″5.5
NYP502000/6000357-475/30010-14/90.8-1.050″7.5/5.5
NYP802000/6000315-417/22815-20/100.8-1.080″15/11
NYP1102000/6000315-417/22820-28/150.8-1.080″18.5/15
NYP1602000/6000320-420/32030-40/300.8-1.0100″18.5
NYP2202000/6000220-285/16030-40/200.8-1.0100″37/18.5
NYP3202000/6000220-285/16040-50/300.8-1.0100″37/22
NYP6502000/6000160-240/12060-90/450.8-1.0125″55/37
NYP7302000/6000160-240/12070-100/500.8-1.0150″55/37
NYP167020001601600.8-1.0200″100
NYP167060002002000.8-1.0200″132

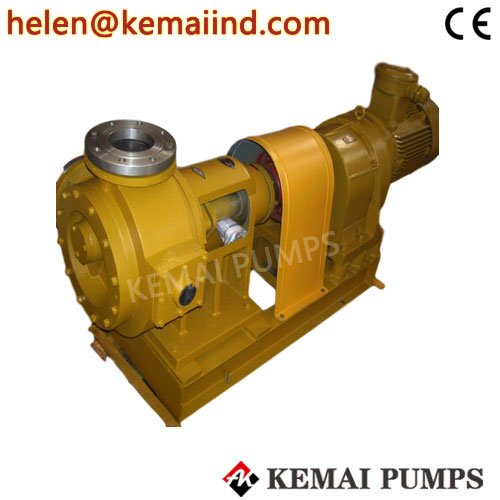

Gear Pump With Jacket NYP Model
Model
