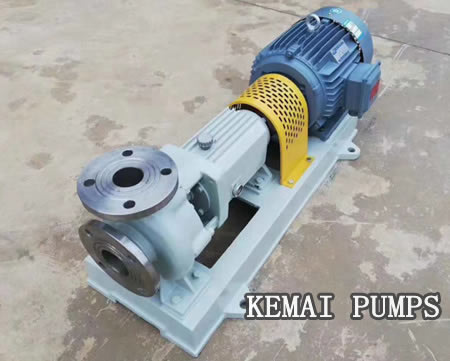

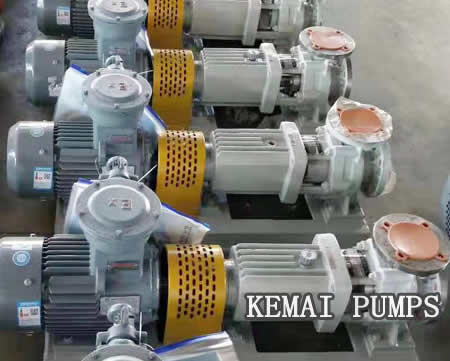

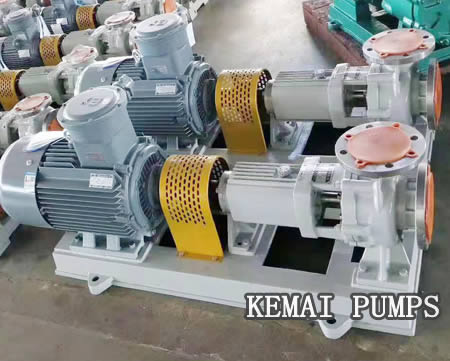

IH chemical centrifugal pump is a horizontal end suction chemical pump.IH centrifugal pump can use for sulfuric acid, hydrochloric acid.China kemai pump offer.

IH chemical centrifugal pump made of highquality stainless steel material. Applied to transfercorrosive liquid (chemical) without solid and viscosity similar to water. Justlike sulfuric acid, hydrochloric acid, nitric acid, even base.If you transfer liquid viscosity is high,choose a stainless steel gear pump is a good way.

  • IH Centrifugal Pump
  • IH Chemical Centrifugal Pump
  • IH Chemical Pump

IH chemical pump could transfer medium is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches300°C(572°F).

IH Chemical centrifugal pump model and flow parameters as follows:

Model Speed Flow(m3/h) Flow(L/S) Head

(m)

Efficiency

(%)

Shaft power

(Kw)

Motor power NPSH(m) Weight

(kg)

Medium density
1.0 1.35 1.85
IH50-32-125 2900 12.5 3.47 20 51 1.33 2.2 3.0 4.0 2.0 45
1450 6.3 1.74 5.0 45 0.19 0.55 0.55 0.55 2.0 45
IH50-32-160 2900 12.5 3.47 32 46 2.37 3.0 4.0 5.5 2.0 49
1450 6.3 1.74 8.0 40 0.34 0.55 0.75 1.1 2.0 49
IH50-32-200 2900 12.5 3.47 50 39 4.36 5.5 7.5 11 2.0 59
1450 6.3 1.74 12.5 33 0.65 1.1 1.1 1.5 2.0 59
IH50-32-250 2900 12.5 3.47 80 33 8.25 11 15 18.5 2.0 93
1450 6.3 1.74 20 27 1.27 2.2 2.2 3.0 2.0 93
IH65-50-125 2900 25 1.53 2.0 62 2.2 3.0 4.0 5.5 2.0 47
1450 12.5 6.94 5.0 55 0.31 0.55 0.55 0.75 2.0 47
IH65-50-160 2900 25 2.78 32 57 3.82 5.5 7.5 11 2.0 53
1450 12.5 6.94 8.0 51 0.53 0.75 1.1 1.5 2.0 53
IH65-40-200 2900 25 2.92 50 52 6.55 11 11 15 2.0 63
1450 12.5 6.94 12.5 46 0.93 1.5 2.2 2.2 2.0 63
IH65-40-250 2900 25 2.92 80 46 46 15 3.0 30 2.0 99
1450 12.5 6.94 20 39 39 2.2 37 4.0 2.0 99
IH65-40-315 2900 25 3.06 125 39 39 30 5.5 55 2.0 116
1450 12.5 6.94 32.0 33 33 5.5 5.5 7.5 2.0 116
IH80-65-125 2900 50 13.9 20 69 3.95 5.5 7.5 11 3.0 52
1450 25 6.94 5.0 64 0.53 0.75 1.1 1.5 2.5 52
IH80-65-160 2900 50 13.9 32 67 6.5 11 11 15 2.3 57
1450 25 6.94 8.0 62 0.88 1.5 1.5 2.2 2.3 57
IH80-50-200 2900 50 13.9 50 63 10.8 15 18.5 30 2.5 65
1450 25 6.94 12.5 54 0.83 1.1 1.5 2.2 2.0 65
IH80-50-250 2900 50 13.9 80 58 18.8 30 37 45 2.5 103
1450 25 6.94 20 52 2.62 4.0 5.5 7.5 2.0 103
IH80-50-315 2900 50 13.9 125 52 32.73 45 55 75 2.0 121
1450 25 6.94 32 48 4.54 7.5 7.5 11 2.0 121
IH100-80-125 2900 100 27.8 20 73 7.47 11 15 18.5 4.5 57
1450 50 13.9 5.0 68 1.0 1.5 2.2 3.0 3.5 57
IH100-80-160 2900 100 27.8 32 73 11.9 15 22 30 4.3 87
1450 50 13.9 8.0 69 1.58 2.2 3.0 4.0 3.4 87
IH100-65-200 2900 100 27.8 50 72 18.9 30 37 45 3.9 96
1450 50 13.9 12.5 68 2.5 3.0 4.0 5.5 2.5 96
IH100-65-250 2900 100 27.8 80 68 32.0 45 55 75 3.6 115
1450 50 13.9 20 63 4.3 5.5 7.5 11 2.5 115
IH100-65-315 2900 100 55.6 125 62 54.9 75 90 132 3.2 166
1450 50 27.8 32 58 7.5 11 15 18.5 2.0 166
IH125-100-200 2900 200 55.6 50 77 35.4 45 55 90 5.0 99
1450 100 27.8 12.5 73 4.66 7.5 11 15 2.9 99
IH125-100-250 2900 200 55.6 80 75 58.1 11 110 132 4.5 151
1450 100 27.8 20 72 7.56 132 15 18.5 2.3 151
IH125-100-315 2900 200 55.6 125 72 94.56 18.5 160 220 4.5 166
1450 100 27.8 32 65 13.41 18.5 22 30 2.8 166
IH125-100-400 1450 100 27.8 50 55 14.74 18.5 30 37 2.5 211
IH150-125-250 1450 200 55.6 20 77 14.1 30 30 37 2.5 165
IH150-125-315 1450 200 55.6 32 75 23.2 30 37 55 2.8 196
IH150-125-400 1450 200 55.6 50 70 38.9 55 75 90 2.8 238
IH200-150-250 1450 400 111.1 20 77 28.3 37 55 75 2.5 195
IH200-150-315 1450 400 111 32 79 44.1 55 75 110 4.0 269
IH200-150-400 1450 400 111 50 78 39.8 90 132 160 3.5 290

IH Chemical Centrifugal Pump For Sulfuric Acid
