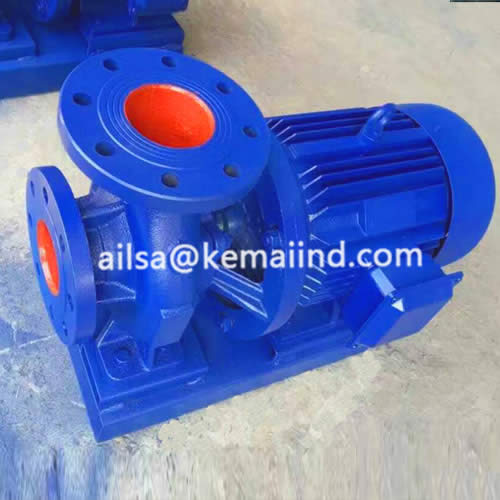

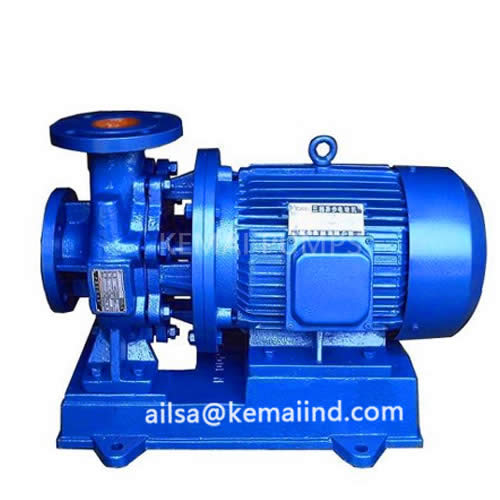

ISW Horizontal was optimized by using domestic advanced hydraulic model.At the same time according to the use of temperature, media and other different ISW based on the derivation of hot water pump, high temperature pump, chemical pump, oil pump, etc.ISW pipe centrifugal pump,ISWH horizontal chemical pump,ISWB horizontal oil pump,ISWR (WRG) hot water (high temperature) circulating pump
ISW Horizontal Centrifugal Pump Service:
1. ISW type pipe centrifugal pump is used for conveying clean water and other liquids with similar physical and chemical properties to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden irrigation, fire-fighting pressurization and supporting equipment.
2, ISWR (WRG) type hot water (high temperature) circulating pump is widely used in energy, metallurgy, chemical, textile, papermaking, and hotels and other boilers high-temperature hot water pressurized circulation and urban heating system circulating pump, ISWR operating temperature T: ≤120℃, WRG operating temperature T: ≤240℃.
3, ISWH horizontal chemical pump, for the transport of no solid particles, corrosive, viscosity similar to water liquid, suitable for petroleum, chemical, metallurgy, electricity, paper, food, pharmaceutical and synthetic fiber sectors, use temperature T: -20℃-120℃.
4. ISWB horizontal oil pump, for the transportation of gasoline, diesel, kerosene and other petroleum products, the operating temperature T: -20℃-120℃.
ISW Horizontal Centrifugal Pump Product Features:
1, stable operation: the absolute concentricity of the pump shaft impeller excellent static and static balance, ensure stable operation, no vibration.
2, watertight: different materials of the cemented carbide seal, to ensure that different media are delivered without leakage.
3. Low noise: the water pump under the two low-noise bearings runs smoothly and is basically noiseless except for the weak sound of the motor.
4, low failure rate: simple and reasonable structure, key parts of the international first-class quality supporting equipment, the machine trouble-free work time greatly improved.
5, easy maintenance: replace the seal, bearing, simple and convenient.
6, more space: the exit can be left, right, up three directions, easy to pipe layout and installation, save space.
Operating Conditions Of ISW Horizontal Centrifugal Pump:
1. Suction pressure ≤ 1.0mpa, or pump system * high working pressure ≤ 1.6mpa, that is, pump inlet pressure + pump head ≤ 1.6mpa, pump static pressure test pressure is 2.5mpa, please specify the system working pressure when ordering.When the working pressure of pump system is more than 1.6mpa, it should be separately mentioned when ordering.In order to make the pump flow parts and joint parts cast steel material.
2. Ambient temperature <40℃, relative humidity <95%.
3. The volume content of solid particles in the conveying medium shall not exceed 0.1% of the unit volume and the particle size
