Jacketed Screw Pump LQ3G Model and Jacket Gear Pump for Glue, liquid Glue, Glue Stick. Gear pump and Screw Pump all OK. If is Glue Stick,need pump with jacketed.
Jacketed Screw Pump LQ3G Model USE:
LQ3G Jacketed Screw Pump is a positive displacement pump, the obvious advantages are simple structure. Small volume, allow high speed work stable and reliable. Small pressure pulsation, steady flow, low noise, high efficiency. It is the use of screw meshing principle. Rely on the rotation of the screw meshing in the pump sleeve. The medium is closed in the meshing cavity. Along the screw axial continuous uniform speed to the outlet. To provide stable pressure for the system.
Three screw pump is suitable for 1000 transport of a variety of non-corrosive oil and similar to the liquid oil. The viscosity of the liquid transport is generally 3 0 ~ 760mm2/s. The high viscosity medium can be transported by adding temperature to reduce viscosity. And its temperature generally does not exceed 350. C.
Three screw pump for Asphalt With Jacket:
When the delivered medium is easy crystallinic . We can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working. The pump can be also fitted with the safty valve.

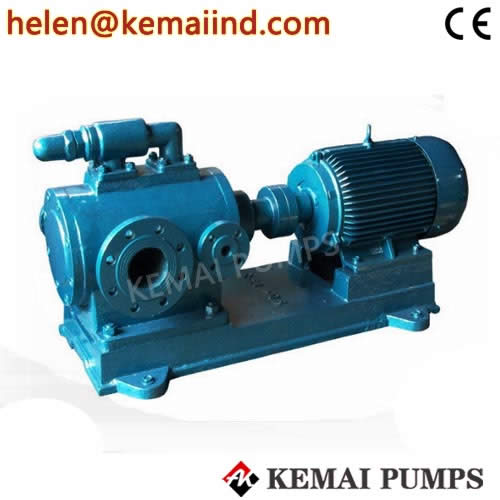

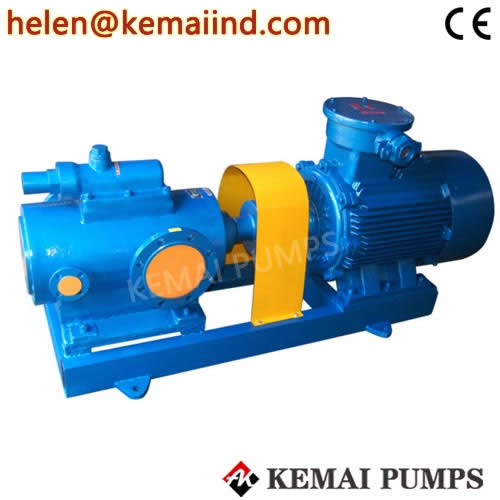

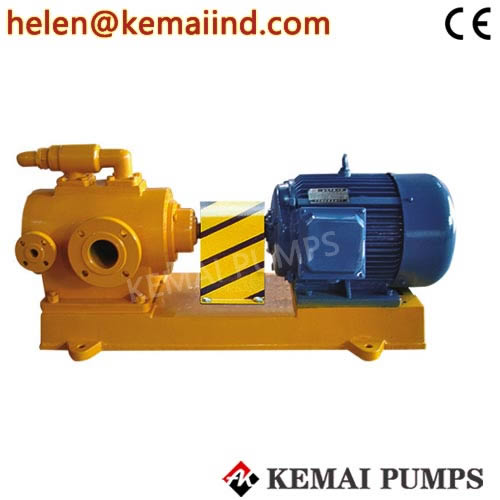

The pump set is composed of the pump,motor and baseplate.
|
Model |
Flow |
Outlet pressure |
Speed |
Motor Power |
Inlet and outlet Caliber |
|
M3/h |
Mpa |
R/min |
KW |
mm |
|
|
LQ3G45X2-46 |
6 |
0.6 |
1450 |
2.2 |
40 |
|
6 |
1.0 |
1450 |
3 |
40 |
|
|
LQ3G54X2-46 |
8 |
1.0 |
970 |
3 |
50 |
|
14 |
0.6 |
1450 |
4 |
50 |
|
|
14 |
1.0 |
1450 |
5.5 |
50 |
|
|
LQ3G80X2-46 |
25 |
0.6 |
1450 |
7.5 |
80-65 |
|
25 |
1.0 |
1450 |
11 |
80-65 |
|
|
LQ3G90X2-46 |
52.5 |
0.6 |
1450 |
15 |
100 |
|
52.5 |
1.0 |
1450 |
18.5 |
100 |
|
|
LQ3G100X2-46 |
72 |
0.6 |
1450 |
18.5 |
125 |
|
72 |
1.0 |
1450 |
22 |
125 |
|
|
LQ3G110X2-46 |
96.7 |
0.6 |
1450 |
30 |
150 |
|
96.7 |
1.0 |
1450 |
45 |
150 |
