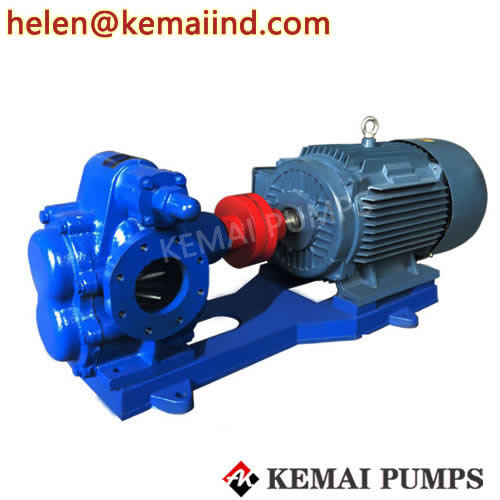

KCB 300 Gear Pump:flow is 300L/min; Inlet/Outlet: DN70; Motor:5.5KW-960RPM; Material: cast iron, stainless steel.
KCB 483.3 Gear Pump:flow is 483.3L/min; Inlet/Outlet:DN70; Motor:11KW-1420RPM; Material: cast iron, stainless steel.
KCB 300 483.3 Gear Pump Usage:

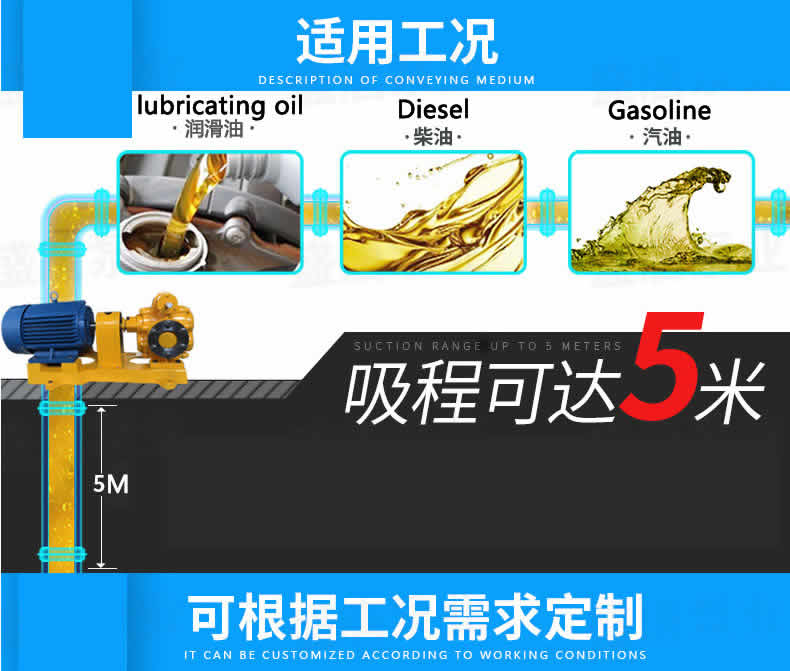

KCB 300 gear pump is suitable to carry various oil, such as the thick oil, diesel fuel and lubrication, animal and vegetable oil etc. Also it’s available to transport the fluid with low flashing point by equipped with copper gear, such as gasoline and benzene, etc. temperature is not higher than 80 ºC, the viscosity for 5-1500 CST lubricating oil or other similar properties of lubricating oil liquid.

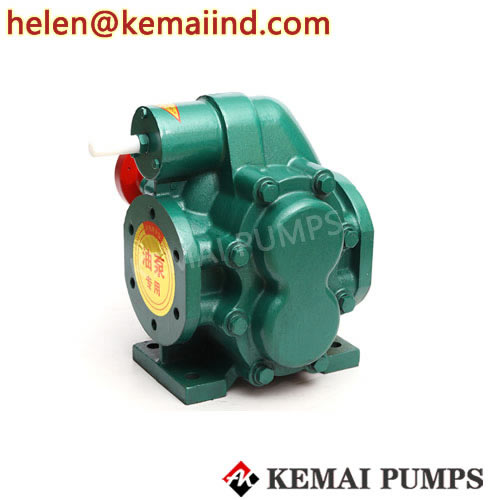

KCB 483.3 Gear Pump Structure:
KCB Gear Pump is also designed with safty valve for protection against overload.The full return flow pressure of the safety valve is 1.5times higher than the rated exhaust pressure of the pump.
It can be also adjusted within the allowance of exhaust pressure range according to circumstances .
But please note the safty valve can’t be applied as pressure-reducing valve for long time .You may install pressure-reducing valve separately on pipe-line if needed.
| Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | Motor power (KW ) |
| KCB18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
| KCB33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
| KCB55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB960 | 4″ | 960 | 0.3 | 5 | 18.5 |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
