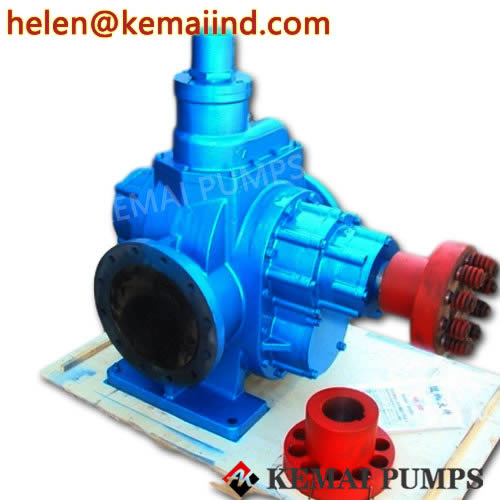

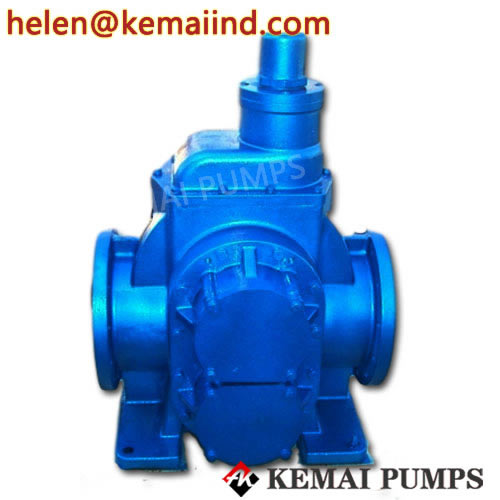

KCB 3800 Gear Pump:flow is 3800L/min; Head:60m Inlet/Outlet:DN250; Motor:110KW-960RPM; Pump Body Material:Cast Iron Ht200/SS304 Gear
KCB 3800 Gear Pump Application:
- In the oil system can be used for transmission, booster pump;
- In the fuel oil system can be used as a transport, pressure, jet fuel pump
- In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;
- In all industrial fields, all can be used as lubricating oil pump.
KCB 3800 Gear Pump Design Features:
1: Coupled gear set with high quality carbon steel(2Cr 13 carbon steel as standard), stainless steel or bronze
material gear is available.
2: Each gear is fitted on a shaft supported by two internal quality bearings immersed in the pumped liquid.
3: KCB 3800 Gear Pump has only one shaft penetration(the drive gear side) through the housing sealed with a mechanical seal, soft packing seal is available.

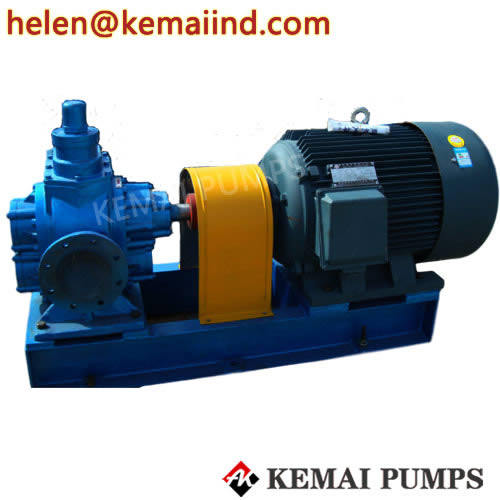

4:Pumps are driven with electric motors through elastic coupling or spacer coupling.
5:With built-in relief valve, setting value 1.5 times of discharge pressure, to protect pump and pipe system.
6:Positive type pump, good self-priming function, suction head about 5 meter.
7: Self-lubrication, no need extra lub. oil or grease.
| Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | Motor power (KW ) |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
