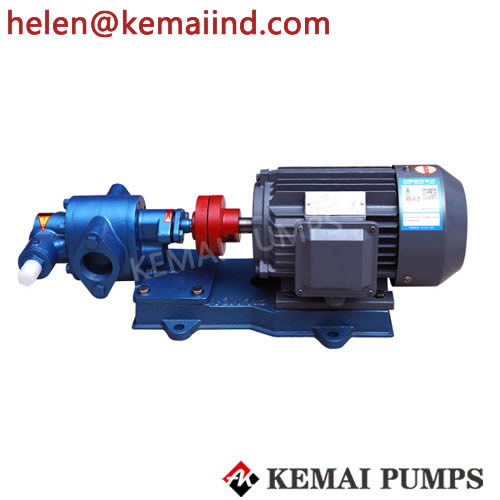

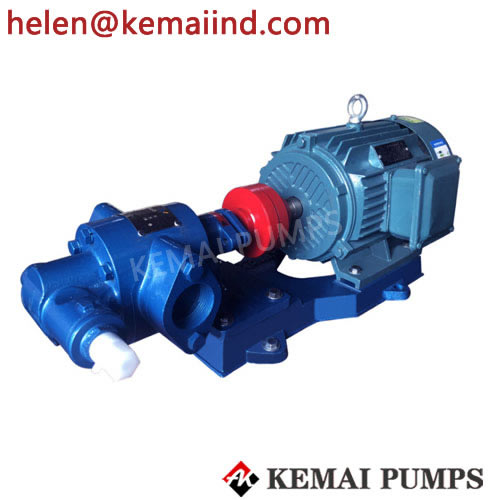

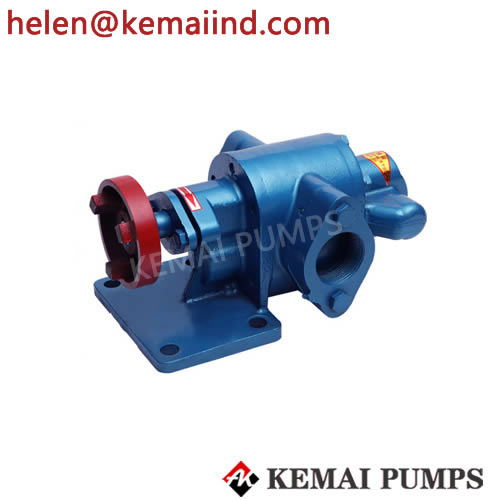

KCB 55 83.3 Gear Pump Parameter:KCB 55 Gear Pump:flow is 55L/min; Inlet/Outlet:G1″; Motor:1.5KW-1450RPM; Material: cast iron, stainless steel.
KCB 83.3 Gear Pump:flow is 83.3L/min; Inlet/Outlet:G1.5″; Motor:2.2KW-1450RPM; Material: cast iron, stainless steel.
KCB 55 83.3 Gear Pump Usage:
KCB gear pump is applicable to transport not containing solid particles and fibers, non-corrosive, temperature is not higher than 80 ºC, the viscosity for 5-1500 CST lubricating oil or other similar properties of lubricating oil liquid.
KCB 55 83.3 Gear Pump Structure Features:
KCB gear pump are mainly composed of gears,axles pump body,pump,cap safety valve and axle-end seals etc.The heattreated gears have the advantage of higher hardness and intensity,and rotate with the axles inside the replaceable bearing sleeves.
All of pump’s parts can be lubricated by delivered medium when working.The pump is properly designed with leakage and return chute,which lets the gears bear the least torque force and reduces load and wear on bearings bear the least torque force and reduces load and wear on bearings in order to raise pump’s efficiency.The pump is properly designed with leakage and return chute,which lets the gears bear the least torque force and reduces load and wear on bearings bear the least torque force and reduces load and wear on bearings
in order to raise pump’s efficiency.
| Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | Motor power (KW ) |
| KCB18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
| KCB33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
| KCB55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB960 | 4″ | 960 | 0.3 | 5 | 18.5 |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
