KCB gear pump made of cast iron or stainless steel,Mainly used in petroleum, chemical, food and other industries.
KCB Gear pump structure
KCB gear pump are mainly gear, shaft, pump body, valve, and shaft seal.Pumps are made of cast iron and stainless steel,Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve.In all parts of the lubrication pump are pump work automatically to achieve using the output media.constant maintenance gear pump, to extend the service life of pump.
KCB gear pump parameter table
| Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | kcb gear pump with Motor power (KW ) |
| KCB-18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
| KCB-33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |

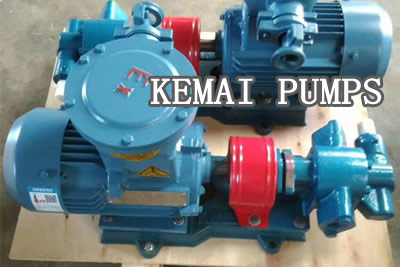

| KCB-55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB-83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB-135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB-200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB-300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB-633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB-960 | 4″ | 960 | 0.3 | 5 | 18.5 |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |

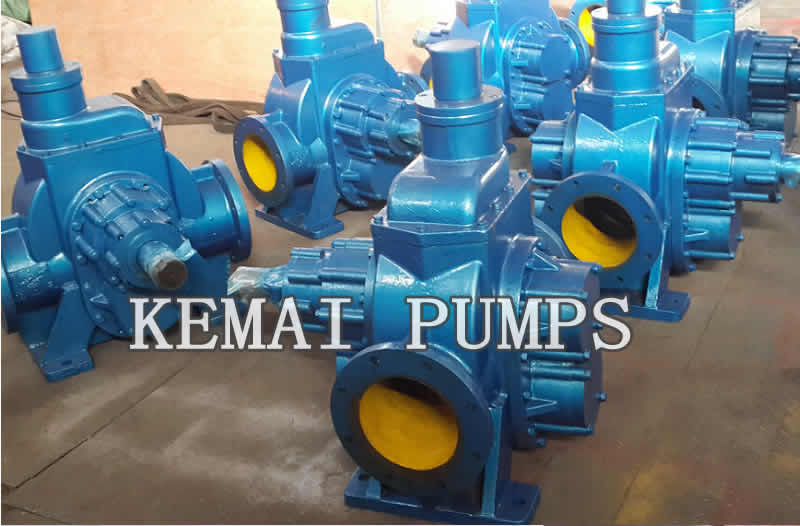

| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |

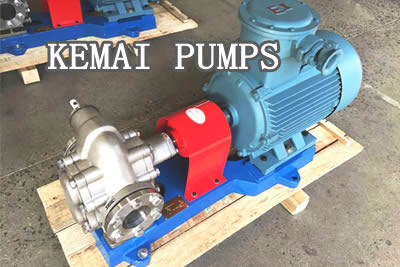

KCB Gear Pump cast iron or stainless steel
