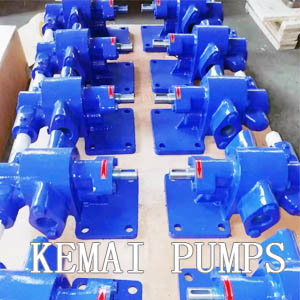

KCB18.3 KCB33.3 KCB55 KCB83.3 gear pump

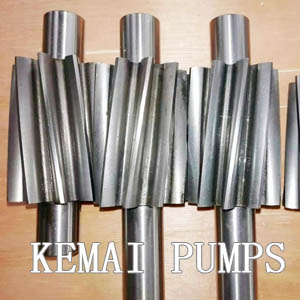

KCB gear pump gear
KCB18.3 KCB33.3 KCB55 KCB83.3 gear pump parameter
KCB18.3 gear pump capacity:1.1m3/h(18.3L/min)，lift :145m，speed:1400r/min,motor:1.5KW-4P
KCB33.3 gear pump capacity:2m3/h(33.3/L/min)，lift :145m，speed:1420r/min,motor:2.2KW-4P
KCB55 gear pump capacity:3.3m3/h(55L/min)，lift :33m，speed:1400r/min,motor:1.5KW-4P
KCB83.3 gear pump capacity:5m3/h(83.3/L/min)，lift :0.33m，speed:1420r/min,motor:2.2KW-4P
KCB18.3 KCB33.3 KCB55 KCB83.3
gear pump structure
KCB18.3 KCB33.3 KCB55 KCB83.3 gear pump，This batch of gear pump gear with hard according to foreign customers requirements, bright surface gear shaft, gear using better materials, so as to improve the wearability pump, also increase the service life of the pump, we can also according to the material requirements of customers for processing customized.
KCB before and after the gear oil pump is a pump body, pump cover, gear, the driven shaft, bearing, valve and parts such as shaft end seal.Main drive gear is a pair of helical gears, straight moving type relief valve.Main drive gear is the herringbone gear set of four helical gear, differential pressure safety valve.Series gear oil pump with all three claw type elastic coupling and motor of oil pump units.
KCB in all parts of the gear lubrication are in use when the pump work automatically to the output media.Pump is the drainage and back into the groove of reasonable design, is a gear in the work under torque force is small, so the bearing load is small, wear small, pump with high efficiency.
