Hygienic stainless steel food rotary lobe pump for the transport of chocolate butter cheese

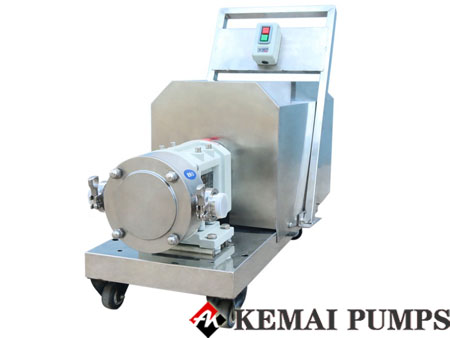

Hygienic food rotary lobe pump

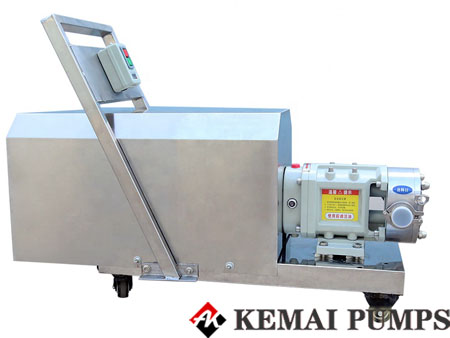

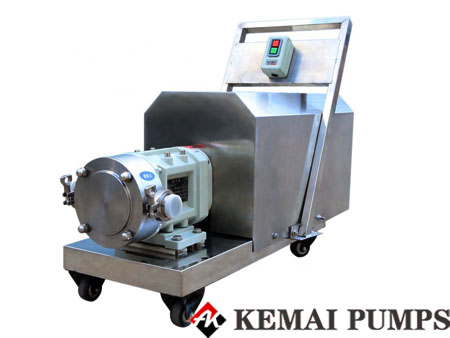

Mobile Sanitary Hygienic stainless steel food rotary lobe pump
stainless steel food rotary lobe pump

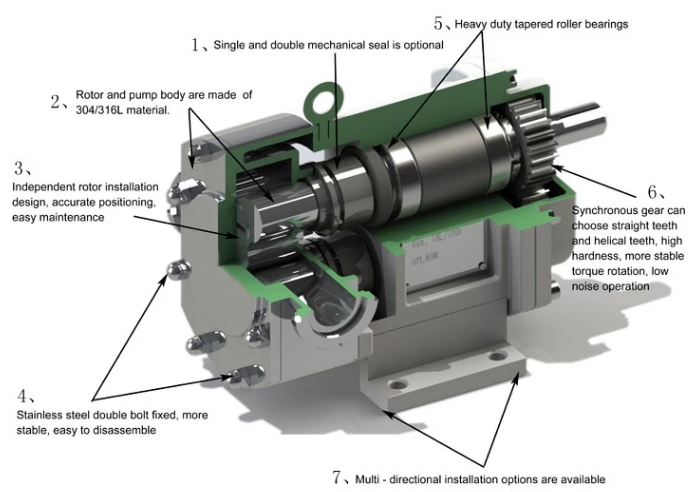

Mobile Sanitary Hygienic stainless steel food rotary lobe pump Product advantages:
Hygienic standard: All parts in contact with the medium (material) are made of stainless steel (SUS304, AISL316, 316L), in line with hygienic standards.
Mobile Sanitary Hygienic stainless steel food rotary lobe pump Working efficiency: up to 90%
medium transmission: it can transport high viscosity medium up to 1.5 million CPS, AS AS AS sensitive medium, containing solid soft particle media, up to 60%.
Reversible operation: using the pump’s symmetrical structure, reversible conveying direction, forward suction, reverse flushing.
Seal: Provides many types of sealing options, Optional double-sided mechanical seal design, suitable for dry running.
Positioning structure: unique rotor installation design, accurate positioning, easy
maintenance . Maintenance: compact structure, small footprint, no need to move the pipeline system during maintenance.
Wear-resistant: all contacts The parts are made of stainless steel with almost no wearing parts.
Low speed operation: low working speed, a certain gap between the rotor and the rotor and the pump body , no friction, low noise, long service life.
Low cost: high work efficiency, Low consumption, environmental protection, less maintenance and long life.
Mobile Sanitary Hygienic Stainless Steel Food Rotary Lobe Pump Performance overview:
| Product Name: | TLP Series Hygienic Cam Pumps |
| Material Science: | SS304 / SS316L / 1.4301 / 1.4404 |
| sealing material: | EPDM (Standard, Approval) |
| Maximum flow: | 80m3/h |
| Maximum pressure: | 10bar |
| Maximum permissible fluid temperature: | 100°C(212°F)/ 200°C(392°F) -water-cooling |
| Specification of power supply: | 220V,240V,380V,400V,415V,440V 50hz / 60hz |
| Connection type: | Fast clamping, flange, thread, SMS, barb, square port |
| Motor power: | 0.75kw,1.1kw,1.5kw,2.2kw,3kw,4KW,5.5KW,7.5KW,11KW,15KW,22KW |
| Entry/Exit location: | Horizontal or vertical |
| Maximum viscosity: | 1×10 6 CST |
