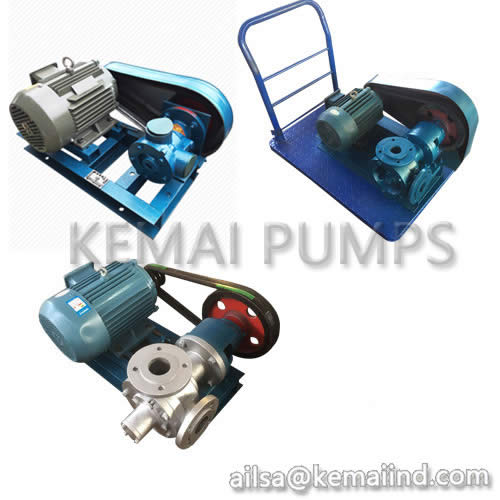

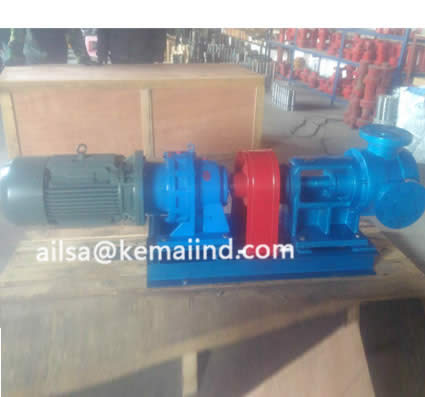

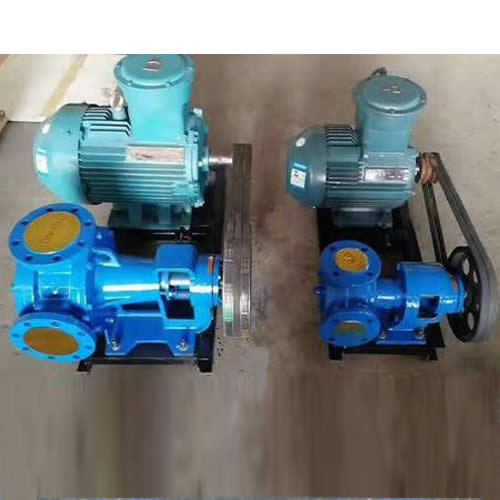

NCB internal engagement gear pump,NCB high viscosity gear pump,NCB stainless steel gear pump using the principle of internal engagement, internal and external gear joint circle close to one side, the other side is “crescent plate” two separated, gear rotation, no trapped liquid phenomenon, advanced structure, small volume, large flow, low noise, long life.
NCB internal engagement gear pump, high viscosity gear pump, stainless steel gear pump using the principle of internal engagement, internal and external gear joint circle close to one side, the other side is “crescent plate” two separated, gear rotation, no trapped liquid phenomenon, advanced structure, small volume, large flow, low noise, long life.
NCB gear pump is suitable for transporting all kinds of light, volatile liquid, until the heavy, viscous liquid, even semi-solid liquid.Widely used in petroleum, chemical, grease, paint and other industries.NCB type internal mesh gear pump is suitable for transporting saponin, silicone oil, coating and other high viscosity media, is widely used.
NCB internal gear pump main application industry:
Chemical and petrochemical: petroleum, additives, polymer, lubricating oil, oil, wax, asphalt,
Plastic polyester: polyester, epoxy resin, hardener, iso-acid ester, moderator, resin
Paint: ink, ink, dye, paint, solvent, ink, rubber solution, viscose, latex
Paper pulp: glue, adhesive, black liquor, caustic soda
Daily chemical industry: sulfonic acid, alkyl benzene, fatty alcohol, detergent, shaving cream, face cream, shampoo, soap liquid
Food industry: vegetable oil, lecithin, syrup, chocolate yeast, protein, honey, glycerin, essence
Chemical fiber industry: viscose, caustic soda, dyes
Set of equipment: polyester equipment, chocolate equipment, lubricating oil circulation, printing machinery, asphalt machinery, asphalt car
Performance Parameters:
|
Model |
Inlet and outlet caliber |
Flow (m3/h) |
Pressure (Mpa) |
Suction vacuum |
Speed (r/min) |
Motor |
Assembly form |
|
|
model |
Power (KW) |
|||||||
|
NCB-1.2/0.3 |
Gi” |
1.2 |
0.3 |
0.03 |
500 |
Y90L-6 |
1.1 |
W-L |
|
NCB-1.8/0.3 |
G11/2″ |
1.8 |
0.3 |
0.03 |
500 |
1.5 |
W-L |
|
|
NCB-3/0.3 |
3 |
700 |
Y100L-6 |
1.5 |
W-L |
|||
|
NCB-6/0.5 |
40 |
6 |
0.5 |
0.05 |
500 |
3 |
W-L |
|
|
NCB-8/0.5 |
8 |
570 |
Y100L2-4 |
3 |
W-L |
|||
|
NCB-12/0.5 |
50 |
12 |
0.5 |
0.05 |
690 |
Y132M1-6 |
4 |
W-L |
|
NCB-16/0.5 |
16 |
380 |
Y132M2-6 |
5.5 |
W-L |
|||
|
NCB-20/0.5 |
20 |
460 |
Y132M-4 |
7.5 |
W-L |
|||
|
NCB-12/0.7 |
80 |
12 |
0.7 |
0.05 |
220 |
Y160M-6 |
7.5 |
W-L |
|
NCB-18/0.7 |
18 |
310 |
Y160L-6 |
11 |
W-L |
|||
|
NCB-24/0.5 |
24 |
0.5 |
0.05 |
420 |
Y10M-4 |
11 |
W-L |
|
|
NCB-30/0.5 |
30 |
520 |
Y160L-4 |
15 |
W-L |
|||
|
NCB-40/0.5 |
12 |
40 |
0.5 |
0.06 |
230 |
Y200L1-6 |
18.5 |
W-L |
|
NCB-50/0.5 |
50 |
290 |
Y200L2-6 |
22 |
W-L |
|||
|
NCB-60/0.5 |
60 |
350 |
Y200L2-6 |
22 |
W-L |
|||
|
NCB-70/0.5 |
70 |
410 |
Y225M-6 |
30 |
W-L |
|||
|
NCB-80/0.5 |
80 |
470 |
Y200L-4 |
30 |
W-L |
|||
|
NCB-100/0.5 |
150 |
100 |
0.5 |
0.06 |
320 |
Y280S-6 |
45 |
W-L |
|
NCB-120/0.5 |
120 |
380 |
Y280M-6 |
55 |
W-L |
|||
|
NCB-150/0.5 |
150 |
420 |
Y280L-4 |
60 |
||||
