Gear Pump for Paraffin With Jacket Model Flow:2m3/h~112m3/h Max. pressure:0.4Mpa~0.8Mpa Gear Pump For Asphalt Material:Cast Steel.High temperature resistance:350℃
Gear Pump For Paraffin Application:
Gear Pump For Paraffin Suitable for conveying medium temperature 350℃.viscosity is not more than 40mm2/s. no solid particles of paraffin wax and other types of solidification at room temperature is easy to crystallize. as well as outdoor installation and process in the cold areas require insulation occasions. Heat conduction oil, hot water. steam and so on can be fed into the medium for heating and insulation.
Paraffin Is one kind of white or flaxen translucent substance that comes out from the distillate, mineral oil, it is a kind of mineral wax.
Gear Pump for Asphalt With Jacket:

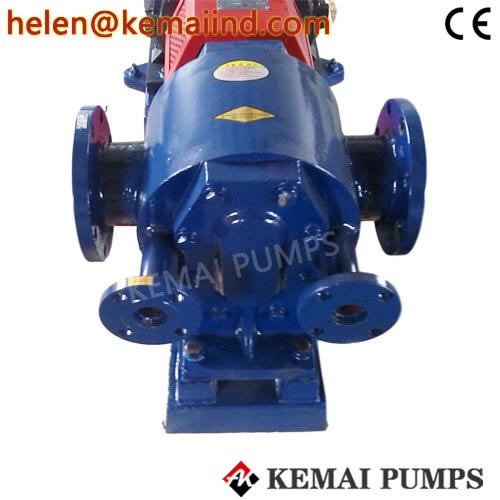

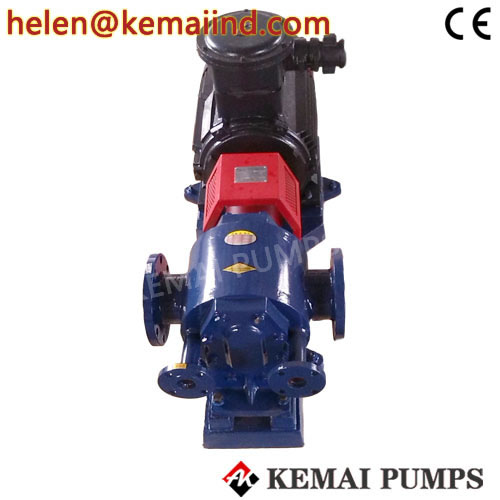

When the delivered medium is easy crystallinic ,we can designthe heat preservation jacket in pump casing and front cover in order to melt the medium with steam wen working.The pump can be also fitted with the safty valve.

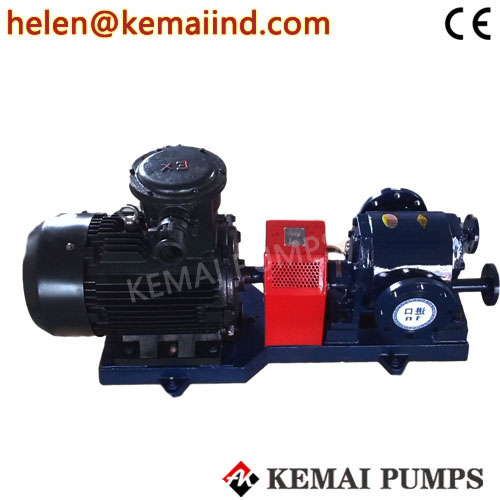

The pump set is composed of the pump,motor and baseplate.
|
Type |
Caliber mm |
Flow |
Discharge pressure Mpa |
Speed r/min |
With motor |
|
|
L/min |
KW |
Motor type |
||||
|
GA-33/0.6 |
25 |
33 |
0.6 |
1000 |
1.5 |
Y100L-6 |
|
GA-50/0.6 |
25 |
50 |
0.6 |
1500 |
2.2 |
Y100L-4 |
|
GA-80/0.6 |
40 |
80 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-125/0.6 |
40 |
125 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-125/0.6 |
50 |
125 |
0.6 |
1000 |
4.0 |
132M-6 |
|
GA-200/0.6 |
50 |
200 |
0.6 |
1500 |
5.5 |
132S-4 |
|
GA-300/0.6 |
80 |
300 |
0.6 |
1000 |
7.5 |
160M-6 |
|
GA-300/0.4 |
80 |
300 |
0.4 |
1000 |
5.5 |
132M-6 |
|
GA-300/0.8 |
80 |
300 |
0.8 |
1000 |
11 |
160M-4 |
|
GA-480/0.4 |
80 |
480 |
0.4 |
1500 |
7.5 |
132M-4 |
|
GA-480/0.6 |
80 |
480 |
0.6 |
1500 |
11 |
160M-4 |
|
GA-480/0.8 |
80 |
480 |
0.8 |
1500 |
15 |
160L-4 |
|
GA-630/0.4 |
100 |
630 |
0.4 |
1000 |
11 |
160L-6 |
|
GA-630/0.8 |
100 |
630 |
0.8 |
1000 |
18.5 |
200L1-6 |
|
GA-960/0.6 |
100 |
960 |
0.6 |
1500 |
22 |
180M-4 |
|
GA-1000/0.6 |
150 |
1000 |
0.6 |
720 |
37 |
280S-8 |
|
GA-1360/0.6 |
150 |
1360 |
0.6 |
960 |
45 |
250M-6 |
|
GA-1800/0.6 |
200 |
1800 |
0.6 |
720 |
55 |
315S-8 |
|
GA-2500/0.6 |
200 |
2500 |
0.6 |
960 |
75 |
315S-6 |
