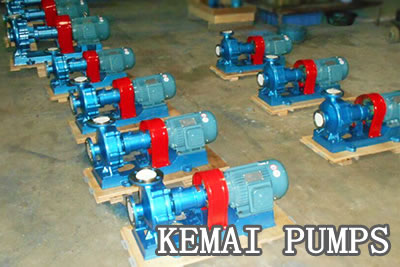

RY hot oil pump for hot oil circulation increase thermal,This is a centrifugal pump,pump material is cast steel, suitable for temperature less than 350℃,
Flow:1~400M3/H Seal: high temperature dynamic seal

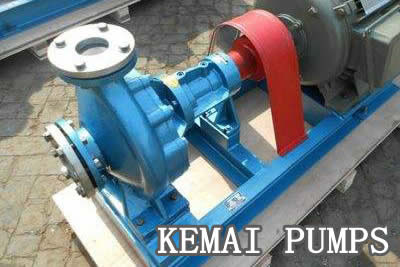

RY hot oil pump introduced
RY high temperature hot oil circulation pump reasonable structure, excellent performance, use and reliable.Suitable for conveying high temperature liquid containing no solid particles.
KEMAI RY high temperature hot oil pump model implication:
RY 50-32-200-A
RY: hot oil pump
50: pump body inlet diameter (mm)
32: pump body outlet diameter (mm)
200: impeller diameter (mm)
A: A cutting impeller diameter
RY Hot Oil Pump Applications
1, oil industry
2, chemical industry
3, synthetic fiber industry
4, textile printing and dyeing industry
5, plastic and rubber industry
6, papermaking industry,
7, wood industry
8, the construction industry
In addition, RY oil pump in mechanical industry, food industry, pharmaceutical production, hot oil furnace oil circulation system, hot oil heating cycle is widely used in the system.

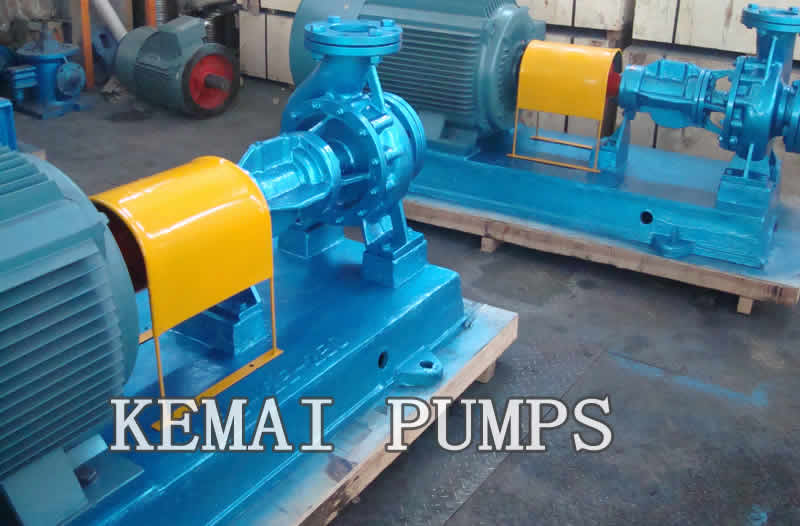

RY hot oil circulation pump flow and motor data:
|
Model |
Capacity |
Head |
Speed |
Power kw |
Motor |
|
|
Shaft |
MOTOR |
|||||
|
RY15-15-100 |
3 |
10 |
2800 |
0.45 |
0.75 |
801 |
|
RY15-15-100A |
2 |
10 |
2800 |
0.36 |
0.55 |
AO2-7122 |
|
RY15-15-100B |
1 |
10 |
2800 |
0.2 |
0.37 |
AO2-7112 |
|
RY20-20-100 |
1 |
10 |
2800 |
0.09 |
0.37 |
AO2-7112 |
|
RY20-20-125 |
1.5 |
22 |
2800 |
0.22 |
0.75 |
801 |
|
RY40-25-160 |
10 |
28 |
2900 |
1.72 |
2.2 |
90L |
|
RY25-25-160 |
3 |
27 |
2900 |
0.53 |
1.5 |
90S |
|
RY32-32-160 |
6 |
28 |
2900 |
0.85 |
1.5 |
90S |
|
RY50-32-160 |
12.5 |
30 |
2900 |
1.90 |
3.0 |
100L |
|
RY50-32-200 |
18 |
40 |
2900 |
3.92 |
5.5 |
132Sl |
|
RY50-32-200A |
16 |
32 |
2900 |
3.35 |
4 |
112M |
|
RY50-32-250 |
12.5 |
80 |
2900 |
6.2 |
11 |
160Ml |
|
RY65-50-160 |
20 |
32 |
2900 |
3.17 |
5.5 |
132S1 |
|
RY65-40-200 |
30 |
48 |
2900 |
6.3 |
7.5 |
132S2 |
|
RY65-40-200A |
25 |
35 |
2900 |
4.0 |
5.5 |
132S1 |
|
RY65-40-250 |
25 |
80 |
2900 |
10.3 |
15 |
160M2 |
|
RY65-40-250A |
20 |
51 |
2900 |
5.67 |
7.5 |
132S2 |
|
RY65-40-315 |
25 |
125 |
2900 |
18.9 |
30 |
200L1 |
|
RY65-40-315A |
22.5 |
100 |
2900 |
15.3 |
22 |
180M |
|
RY80-50-200 |
50 |
50 |
2900 |
9.7 |
15 |
160M2 |
|
RY80-50-200A |
45 |
40 |
2900 |
7.8 |
11 |
160M1 |
|
RY80-50-200B |
40 |
32 |
2900 |
6.37 |
7.5 |
132S2 |
|
RY80-50-250 |
50 |
80 |
2900 |
17.1 |
22 |
180M |
|
RY80-50-250A |
43 |
60 |
2900 |
12.8 |
15 |
160M2 |
|
RY80-50-315 |
50 |
125 |
2900 |
30.4 |
45 |
225M |
|
RY80-50-315A |
45 |
100 |
2900 |
23.6 |
30 |
200L1 |
|
RY100-65-200 |
100 |
50 |
2900 |
18.4 |
22 |
180M |
|
RY100-65-200A |
94 |
44 |
2900 |
16 |
22 |
180M |
|
RY100-65-200B |
87 |
38 |
2900 |
13.8 |
15 |
160M2 |
|
RY100-65-200C |
80 |
32 |
2900 |
11.8 |
15 |
160M2 |
|
RY100-65-250 |
100 |
80 |
2900 |
32.06 |
37 |
200L2 |
|
RY100-65-250A |
95 |
72 |
2900 |
29 |
37 |
200L2 |
|
RY100-65-250B |
90 |
65 |
2900 |
26.2 |
30 |
200L1 |
|
RY100-65-250C |
85 |
50 |
2900 |
20.3 |
30 |
200L1 |
|
RY100-65-315 |
100 |
125 |
2900 |
50.06 |
75 |
280S |
|
RY100-65-315A |
95 |
113 |
2900 |
45.23 |
55 |
250M |
|
RY100-65-315B |
90 |
100 |
2900 |
40.5 |
55 |
250M |
|
RY100-65-315C |
82 |
84 |
2900 |
34.76 |
45 |
225M |
|
RY125-100-200 |
200 |
50 |
2900 |
35.4 |
45 |
225M |
|
RY125-100-200A |
178 |
40 |
2900 |
26.6 |
37 |
200L2 |
|
RY125-100-250 |
200 |
70 |
2900 |
47 |
55 |
250M |
|
RY125-100-250A |
190 |
63 |
2900 |
41.6 |
55 |
250M |
|
RY125-100-250B |
180 |
57 |
2900 |
37.9 |
45 |
225M |
|
RY125-100-250C |
170 |
51 |
2900 |
32.15 |
45 |
225M |
|
RY125-100-250D |
150 |
70 |
2900 |
40 |
45 |
225M |
|
RY150-150-200 |
350 |
50 |
2900 |
60 |
75 |
280S |
|
RY150-150-200A |
313 |
40 |
2900 |
45 |
55 |
250M |
|
RY200-150-400 |
350 |
50 |
1450 |
61.8 |
75 |
280S |
|
RY200-150-400A |
330 |
45 |
1450 |
52.8 |
75 |
280S |
|
RY250-200-400 |
500 |
50 |
1480 |
86.2 |
110 |
315S |
|
RY250-200-500 |
500 |
80 |
1480 |
136 |
160 |
315M |
|
RY250-200-500A |
400 |
50 |
1480 |
75 |
90 |
280M |
