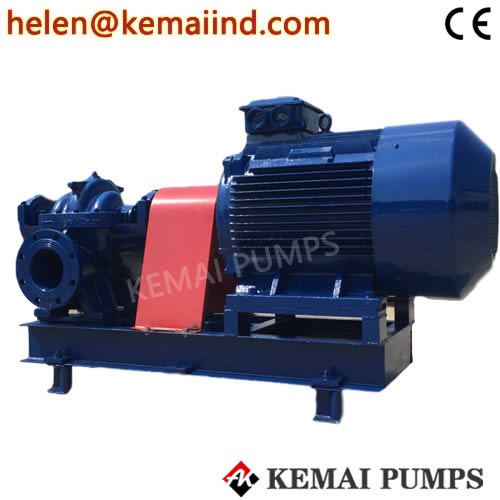

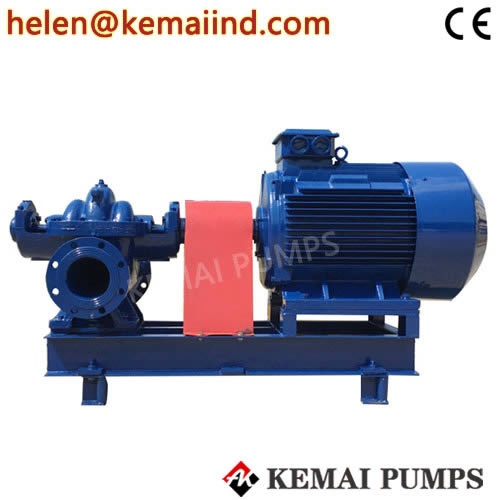

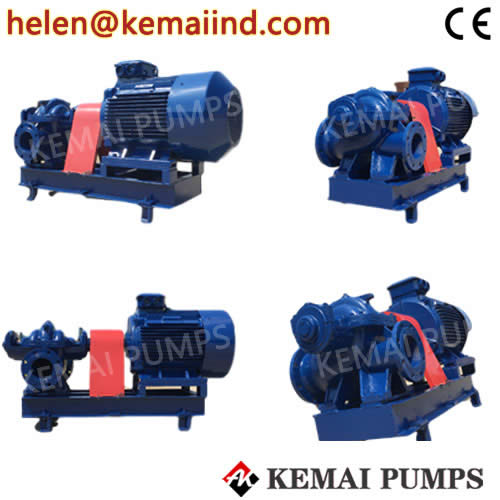

Single Stage Double Suction Axially Split Pump

Single Stage Double Suction Axially Split Pump is Double Suction Electric Motor Axially Split Casing Water Pump “S” level of electro pump is single stage. double suction type centrifugal pump.

•

•

•

Axially Split Pump Summarize:

Single Stage Double Suction Axially Split Pump is mainly used for pressurized water system, also applicable to the water plant, irrigation and drainage pumping stations, power stations, air-conditioning cycle of water, industrial water systems, fire systems, building industry, oil refining, mining, and other transport liquid occasions. water conservancy projects, such as drainage or water supply pump. can also be used for irrigation.For conveying water without solid particles or the physical and chemical properties similar to water other liquid. by conveying medium temperature 0 ºC ~ 80 ºC, allow the inlet pressure of 0.6 MPa.

Single Stage Double Suction Axially Split Pump structure:

1:Double suction high volume water pump is horizontal split pump and single stage double suction impeller.
2:The suction pipe and discharge pipe are connected with bottom half pump body by casting.
3:You need not to disassemble pipe and motor when you are checking the rotor part of the pump.

Transmission of Double entry centrifugal pump agriculture pump: The motor drives the pump by flexible coupling. From the tranmission side, pump counter clockwise rotate(we can also provide clockwise rotate pump by specially designing).
Shaft seal of Double entry centrifugal pump agriculture pump: Double suction water pump is soft packing seal. There is replaceable shaft sleeve at shaft seal place.
Bearing and Balance device of Double entry centrifugal pump agriculture pump: Bearin(rolling bearing or sliding bearing) is installed at both ends of the pump shaft. Axial force is balanced by double suction impeller and spare axial force is balanced by rolling bearing. Grease lubricate the rolling bearing and thin oil lubricate the sliding bearing.

Double suction type centrifugal pump Data Table:

Single Stage Double Suction Axially Split Pump
Medium Temperature	≤80°C
Capacity	80-3710m3/h
Head	8-200m
Speed	730-3500r/min
Size	DN80-1000mm
Main usage	Water Supply
