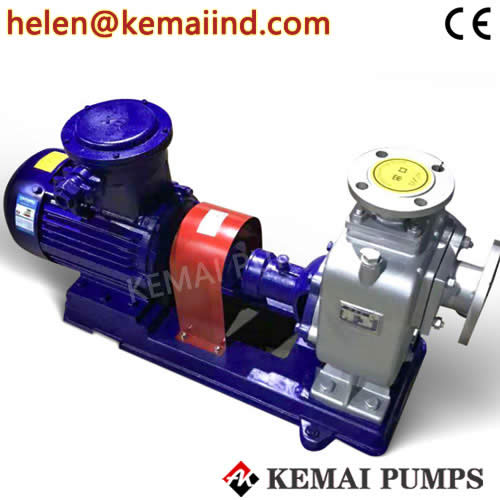

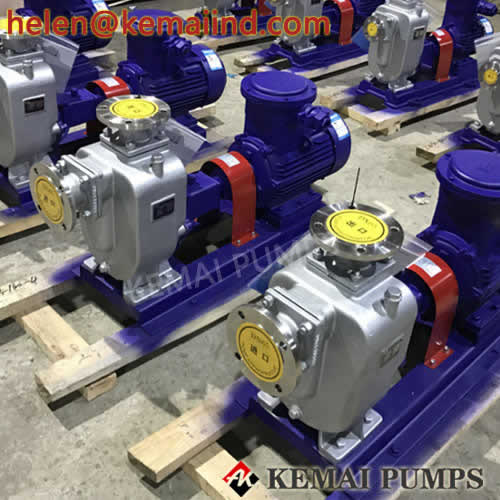

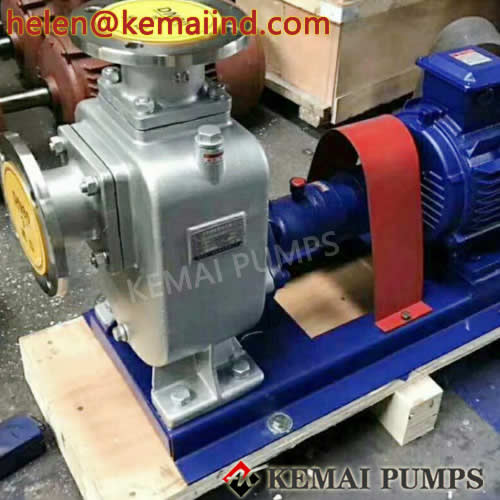

Stainless Stee Self-Priming centrifugal Pump ZX Model IS Sewage Water Irrigation Pump, Self-Priming Pump, Trash Pump, Sewage Water Pump.The pump material:Stainless Stee.
Stainless Stee Self-Priming centrifugal Pump Brief introduction:
This kind of Stainless Stee Self-Priming centrifugal Pump combines self priming and non-clogging, adopting axial circumfluence outer-mix type. And through the particular design of case and impeller channel. It not only needn’t to be fixed with base valve and poured in water like normal self priming. But also can suck and discharge liquid contain-ing big grain and long fibrin substance. It has features of simple structure. Good self priming performa-nce and high sewage capability. High efficiency and energy saving, convenient usage and maintenance etc compared with domestic similar product. And it belongs to the first creation in the country at sewage pump series. It can well match diesel engine to improve the working efficiency greatly.
centrifugal Pump Structure:
Stainless Stee Self-Priming centrifugal Pump consists of pump body, impeller, back cover, me-chanical seal, pump shaft, bearing seat, inlet valve, air-liquid separate pipe, water valve, inlet and outlet connection pipe etc.
Stainless Stee Self-Priming centrifugal Pump Working principle:
Deposit liquid chamber is designed in self priming pump body. It and back flow hole upside and circulation hole down connect working chamber of pump. They become axial circumfluence outer-mix system…Some liquid has deposited inside of pump when pump stops. When pump starts, the deposit liquid with air throws up out under the effect of impeller. Liquid goes back to working chamber by the gridding of air-liquid separate pipe and air is discharged out of pump. Meanwhile pump body inside becomes vacuum and it realizes self priming performance.
|
Model |
Flow（Q） |
Head(m) |
吸程(m) |
Speed(r/min) |
Power（KW） |
|
|
(m3/h) |
（L/S） |
|||||
|
25ZX3.2-20 |
3.2 |
0.9 |
20 |
6.5 |
2900 |
0.75 |
|
25ZX3.2-32 |
3.2 |
0.9 |
32 |
6.5 |
2900 |
1.1 |
|
40ZX6.3-20 |
6.3 |
1.8 |
20 |
6.5 |
2900 |
11 |
|
40ZX10-40 |
10 |
2.8 |
40 |
6.5 |
2900 |
4 |
|
50ZX15-12 |
15 |
4.2 |
12 |
6.5 |
2900 |
1.5 |
|
50ZX18-20 |
18 |
5 |
20 |
6.5 |
2900 |
2.2 |
|
50ZX12.5-32 |
12.5 |
3.5 |
32 |
6.5 |
2900 |
3 |
|
50ZX20-30 |
20 |
5.6 |
30 |
6.5 |
2900 |
4 |
|
50ZX14-35 |
14 |
3.9 |
35 |
6.5 |
2900 |
4 |
|
50ZX10-40 |
10 |
2.8 |
40 |
6.5 |
2900 |
4 |
|
50ZX12.5-50 |
12.5 |
3.5 |
50 |
6.5 |
2900 |
5.5 |
|
50ZX15-60 |
15 |
4.2 |
60 |
6.5 |
2900 |
7.5 |
|
50ZX20-75 |
20 |
5.6 |
75 |
6.5 |
2900 |
11 |
|
65ZX30-15 |
30 |
8.3 |
15 |
6.5 |
2900 |
3 |
|
65ZX25-32 |
25 |
6.9 |
32 |
6 |
2900 |
5.5 |
|
80ZX35-13 |
35 |
9.7 |
13 |
6 |
2900 |
3 |
|
80ZX43-17 |
43 |
12 |
17 |
6 |
2900 |
4 |
|
80ZX40-22 |
40 |
11.1 |
22 |
6 |
2900 |
5.5 |
|
80ZX50-25 |
50 |
13.9 |
25 |
6 |
2900 |
7.5 |
|
80ZX50-32 |
50 |
13.9 |
32 |
6 |
2900 |
7.5 |
|
80ZX60-55 |
60 |
16.7 |
55 |
6 |
2900 |
18.5 |
|
80ZX60-70 |
60 |
16.7 |
70 |
6 |
2900 |
22 |
|
100ZX100-20 |
100 |
27.8 |
20 |
6 |
2900 |
11 |
|
100ZX100-40 |
100 |
27.8 |
40 |
6 |
2900 |
22 |
|
100ZX100-65 |
100 |
27.8 |
65 |
6 |
2900 |
30 |
|
100ZX70-75 |
70 |
19.4 |
75 |
6 |
2900 |
30 |
|
150ZX170-55 |
170 |
47.2 |
55 |
5 |
2900 |
45 |
|
150ZX170-65 |
170 |
47.2 |
65 |
5 |
2900 |
55 |
|
150ZX160-80 |
160 |
44.4 |
80 |
5 |
2900 |
55 |
|
200ZX400-32 |
400 |
111.1 |
32 |
5 |
1450 |
55 |
|
200ZX280-63 |
280 |
77.8 |
63 |
5 |
1450 |
90 |
|
200ZX350-65 |
350 |
97.2 |
65 |
5 |
1450 |
110 |
|
250ZX550-32 |
550 |
152.8 |
32 |
5 |
1450 |
75 |
|
250ZX400-50 |
400 |
111.1 |
50 |
5 |
1450 |
90 |
|
250ZX450-55 |
450 |
125 |
55 |
5 |
1450 |
110 |
|
250ZX400-75 |
400 |
111.1 |
75 |
5 |
1450 |
132 |
|
300ZX600-32 |
600 |
166.7 |
32 |
5 |
1450 |
90 |
|
300ZX500-50 |
500 |
138.9 |
50 |
5 |
1450 |
110 |
|
300ZX550-55 |
550 |
152.8 |
55 |
5 |
1450 |
132 |
