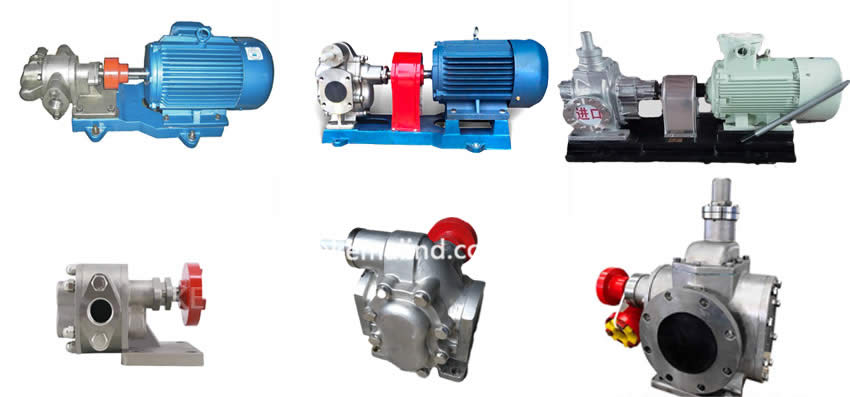

Stainless Steel Gear Pump For Corn Oil & Sesame Oil Characteristics
Stainless steel gear pump for corn oil & sesame oil simple and compact structure, easy to use and maintenance.With good self-imbibition, it is not necessary to infuse liquid before each pump.
lubrication is automatically achieved by the delivery of liquid, so there is no need to add additional lubrication fluid in daily work.the use of elastic coupling to transfer power to compensate for small errors caused by the installation.In the oil pump work by the inevitable hydraulic impact, can play a good buffer.
Stainless Steel Gear Pump For Corn Oil & The Original Oil Performance Parameters:
Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | Motor power (KW ) |
ZCK18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
ZCK33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
ZCK55 | 1″ | 55 | 0.33 | 5 | 1.5 |
ZCK83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
ZCK135 | 2″ | 135 | 0.33 | 5 | 4 |
ZCK200 | 2″ | 200 | 0.33 | 5 | 4 |
ZCK300 | 3″ | 300 | 0.33 | 5 | 5.5 |
ZCK483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
ZCK483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
ZCK633 | 4″ | 633 | 0.28 | 5 | 11 |
ZCK960 | 4″ | 960 | 0.3 | 5 | 18.5 |
ZCK1200 | 6″ | 1200 | 0.6 | 3 | 37 |
ZCK1600 | 6″ | 1600 | 0.6 | 3 | 45 |
ZCK1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
ZCK2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
ZCK3800 | 10″ | 3800 | 0.6 | 2 | 110 |
ZCK5400 | 10″ | 5400 | 0.6 | 2 | 110 |
ZCK7600 | 14″ | 7600 | 0.6 | 2 | 200 |
ZCK9600 | 14″ | 9600 | 0.6 | 2 | 250 |
Install Stainless Steel Gear Pump For Corn Oil & Sesame Oil:
A. Before installation, check whether the pump is damaged in transportation, such as whether the motor is damp, whether the dust cover at the pump inlet and outlet is damaged and whether dirt enters the pump chamber.
B. Clean the inner wall of the pipe with clean water or steam before installing the pipe.Installation should avoid the weight of the pipe to be borne by the pump, so as not to affect the accuracy and life of the pump.
C. The gear oil pump should be as close to the oil pool as possible;No leakage of air or liquid is allowed in the connection parts of the pipeline, or the phenomenon of not absorbing liquid will occur.
D. In order to prevent dirt such as particles and impurities from entering the pump, a metal filter screen should be installed at the suction inlet with a filtration accuracy of 30 mesh /in, and the filtration area should be more than three times larger than the cross-sectional area of the inlet pipe.
E. It is recommended to install vacuum gauge and pressure gauge for inlet and outlet pipeline to monitor the working status of the pump.
F. When the oil pool is deep, the suction pipe is long or the medium viscosity is high and the vacuum degree is too high, the inlet pipe can be thickened.When the suction pipe is longer, the bottom valve should be installed.
