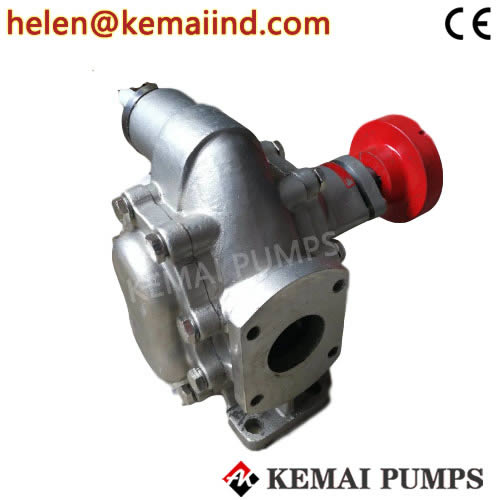

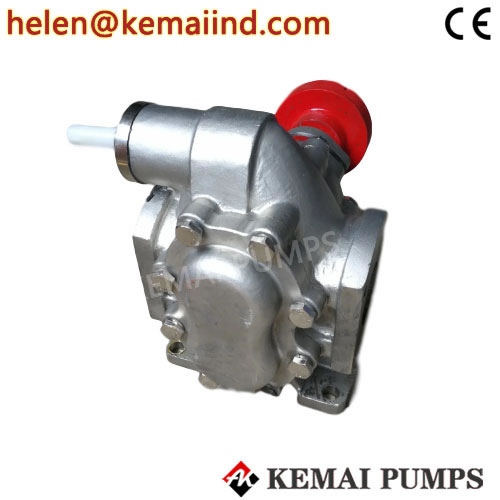

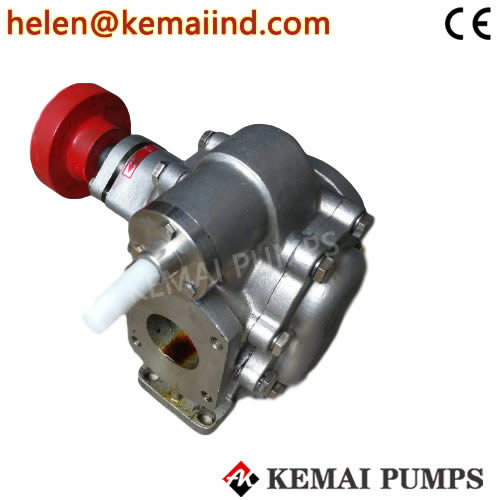

Stainless Steel Rotary Gear Pump SS304 SS316 SS316L: Transport corrosive liquids, food and oils, soybean oil, olive oil, edible oil.
Stainless Steel Rotary Gear Pump Use:
KCB series gear pump is applicable to transport not containing solid particles and fibers, non-corrosive, temperature is not higher than 80 ºC, the viscosity for 5 x 10-6 ~ 1.5 x 10-3 m2 / s (5-1500 CST) lubricating oil or other similar properties of lubricating oil liquid.
In the oil transportation system, it can be used as a transmission and booster pump;
A fuel pump used in a fuel system for transportation, pressurization, and injection;
It can be used as lubricating oil pump in all industrial fields.
Gear Pump instructions:
- Material: Stainless Steel
- Feature & Benefit: Gear Pump
- Double Rotary Gears
Large Output, Low Pressure
Self priming
Oily Liquids Transfer
Stainless Steel material available
| Model | Caliber (Inch) | Flow (L/min ) | Pressure (MPa ) | Suction Lift (m ) | Motor power (KW ) |
| KCB18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
| KCB33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
| KCB55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB960 | 4″ | 960 | 0.3 | 5 | 18.5 |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
Stainless Steel Rotary Gear Pump SS304 SS316 SS316L
