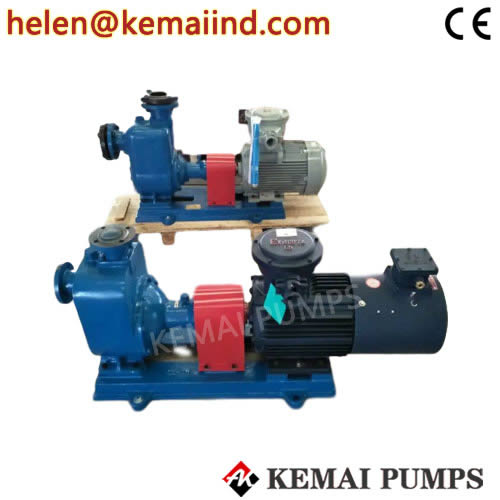

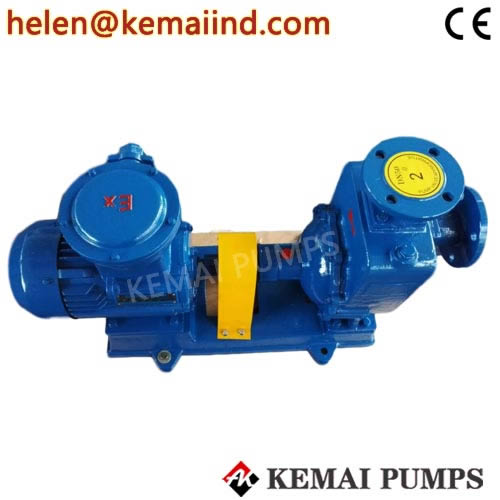

Transfer Pump Oil Diesel Gasoline CYB-S Type whichis used to transport oil products such as gasoline, diesel , kerosene, jet fuel, is a kind of good cargo oil pump
Transfer Pump Oil Diesel Gasoline CYB-S Type Use:
whichis used to transport oil products such as gasoline, diesel , kerosene, jet fuel, is a kind of good cargo oil pump, and is suitable for the oil , fuel oil transportation. For land, the pump can also be used to transport sea water, fresh water, etc. After the change with corrosion resistant mechanical seal, it can handle chemical.
Transfer Pump Oil Diesel Gasoline pump instructions:
This self priming pump belongs to self-priming centifugal oil pump, it’s features are simple construction, easy operation, well moving, convenient repairing, high displacement, high efficiency and wide application slope etc.
The pump is composed of suction room store liquid room vortex room, liquid returning hole, gas adn liquid dividing roon etc. The pumps adopt the single row radial bal l bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.
CYB-S Type Pump Oil DieselParameter:
| Model | Power (kw) | Rotation (rpm) | Capacity (m3/h) | Head (m) | Self – Priming Lift(m) |
| 25CYB-S-20 | 1.5 | 2900 | 3.2 | 20 | 5 |
| 25CYB-S-32 | 1.5 | 2900 | 3.2 | 32 | 5 |
| 32CYB-S-20 | 3 | 2900 | 3.2 | 50 | 5 |
| 40CYB-S-20 | 1.5 | 2900 | 6.3 | 20 | 5 |
| 40CYB-S-32 | 2.2 | 2900 | 6.3 | 32 | 5 |
| 40CYB-S-40 | 4 | 2900 | 10 | 40 | 5 |
| 40CYB-S-50 | 4 | 2900 | 6.3 | 50 | 5 |
| 50CYB-S-12 | 1.5 | 2900 | 12.5 | 12 | 5 |
| 50CYB-S-20 | 2.2 | 2900 | 15 | 20 | 5 |
| 50CYB-S-30 | 3 | 2900 | 12.5 | 30 | 5 |
| 50CYB-S-35 | 4 | 2900 | 12.5 | 35 | 5 |
| 50CYB-S-40 | 4 | 2900 | 10 | 40 | 5 |
| 50CYB-S-50 | 5.5 | 2900 | 12.5 | 50 | 5 |
| 50CYB-S-60 | 7.5 | 2900 | 12.5 | 60 | 5 |
| 50CYB-S-75 | 11 | 2900 | 15 | 75 | 5 |
| 65CYB-S-15 | 3 | 2900 | 30 | 15 | 4 |
| 65CYB-S-32 | 5.5 | 2900 | 25 | 32 | 5 |
| 65CYB-S-50 | 7.5 | 2900 | 25 | 50 | 5 |
| 65CYB-S75 | 18.5 | 2900 | 25 | 75 | 5 |
| 80CYB-S-13 | 3 | 2900 | 35 | 13 | 4 |
| 80CYB-S-17 | 4 | 2900 | 43 | 17 | 4 |
| 80CYB-S-22 | 5.5 | 2900 | 40 | 22 | 4 |
| 80CYB-S-25 | 7.5 | 2900 | 50 | 25 | 4 |
| 80CYB-S-32 | 7.5 | 2900 | 50 | 32 | 4 |
| 80CYB-S-40 | 11 | 2900 | 50 | 40 | 4 |
| 80CYB-S-55 | 18.5 | 2900 | 60 | 55 | 4.5 |
| 80CYB-S-70 | 22 | 2900 | 60 | 70 | 4.5 |
| 100CYB-S-20 | 11 | 2900 | 100 | 20 | 3.5 |
| 100CYB-S-40 | 22 | 2900 | 100 | 40 | 4.5 |
| 100CYB-S-65 | 30 | 2900 | 100 | 65 | 4.5 |
| 100CYB-S-80 | 30 | 2900 | 70 | 80 | 4.5 |
| 150CYB-S-45 | 37 | 2900 | 170 | 45 | 4.5 |
| 150CYB-S-55 | 45 | 2900 | 160 | 55 | 4.5 |
| 150CYB-S-65 | 55 | 2900 | 170 | 65 | 4.5 |
| 150CYB-S-80 | 55 | 2900 | 160 | 80 | 4.5 |
| 200CYB-S-32 | 55 | 1450 | 400 | 32 | 4.5 |
| 200CYB-S-63 | 90 | 1450 | 280 | 63 | 4.5 |
| 200CYB-S-65 | 110 | 1450 | 350 | 65 | 4.5 |
| 250CYB-S-32 | 75 | 1450 | 550 | 32 | 4.5 |
| 250CYB-S-50 | 90 | 1450 | 400 | 50 | 4.5 |
| 300CYB-S-32 | 90 | 1450 | 600 | 32 | 4.5 |
| 300CYB-S-50 | 110 | 1450 | 500 | 50 | 4.5 |
