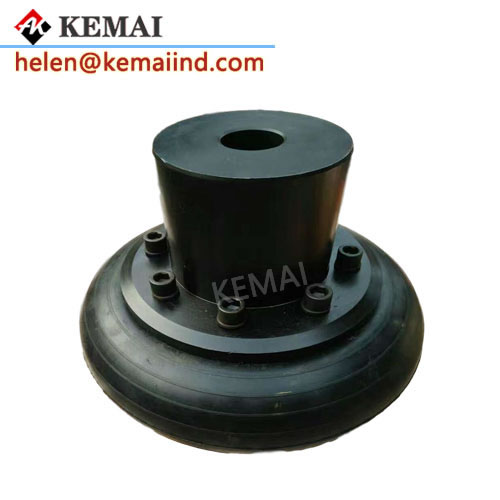

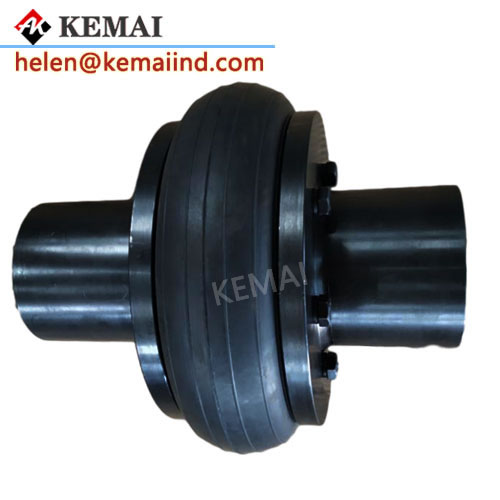

Tyre Resilient Coupling LLB Model Other names Tire coupling LLB Model and Tire Rubber Shaft coupling LLB Model.
Design Feature-Tyre Resilient Coupling:
1.The couplings are highly elastic,backlash-free,absorb shocks and dampen vibrations.
2.Inherent Overload Protection and high misalignment capacity.

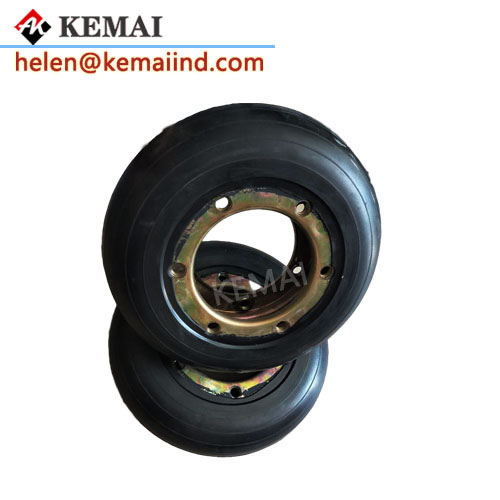

3.Flexible component is a whole tire body.
4.Size range from LLB1 to LLB13(13sizes)Minimum Torque size 10Nm to maximum Torque 20000Nm.Bore Diameter sizes from 6mm to 200mm.
5.Spacer tyre couplings for DBSE of 80 mm,100 mm,140 mm&180 mm
6.Available as through bore or with taper lock bushes
LLB Tire Tubber Dhaft Coupling advantage:
The coupling is highly flexible,has good shock absorption and superior compensation performance of axial deviation
Working temperature-20℃～+80℃,Transmission torque 10-20000Nm.
Suitable for wet,dusty,there is shock and vibration,frequent positive inversion variable,frequent start working condition.
Flexible component is a whole tire body,disassemble maintenance more convenient,long term reliability
Tyre Resilient Coupling uses natural compounds makes it suitable for use in most outdoor conditions.
Handle combinations of parallel 1%of outside diameter,angular within 2%and axial end float within-10%and+3%of the width of the coupling displacement.
Installing and dismantling of Tyre coupling is quick and easy without need of special tools.Damping effect reduce absorb shock loads,Torsional vibrations and oscillations..Maintainence free,no need for lubrication and no dismantling required for inspections of components.
