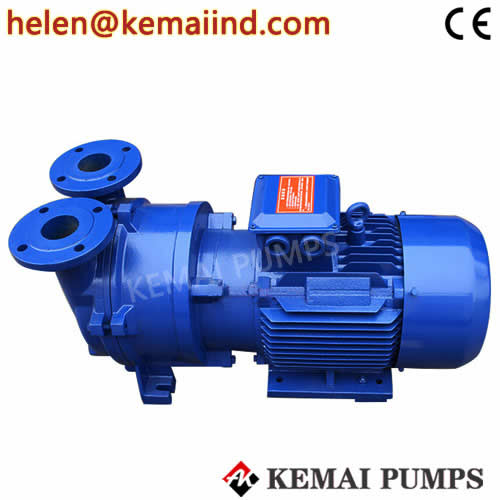

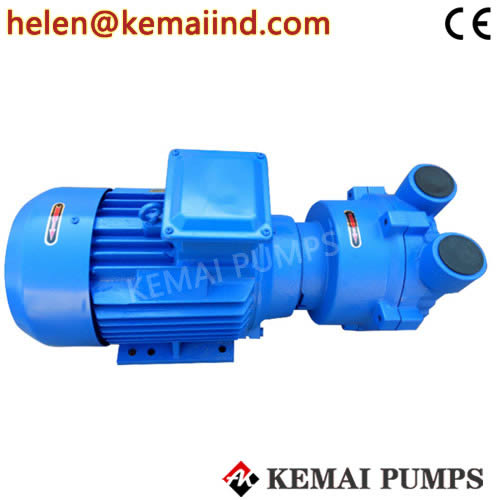

Water Ring Vacuum Pump 2BV Model

Water Ring Vacuum Pump 2BV Model material:SUS304, SUS316, SUS316L.The material of the shaft is 2Cr13 or 0Cr18Ni12Mo2Ti.

•

•

•

2BV Series Water Ring Vacuum Pump Product Introduction:

Water Ring Vacuum Pump 2BV Model are suitable for pumping the gases and steam. Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree). When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, it is necessary to couple with the cavitation protection pipe in order to get rid of the screaming so as to protect the pump. 2BV series water ring vacuum pumps and compressors are widely used in petroleum, chemical, pharmaceutical, food, sugar industry and other fields.Also can be used for pumping the explosive gases or work in the flammable and explosive environment.

Water Ring Vacuum Pump Advantage :

1:The directly connected and coaxial design is easy to install and save space.
2:Mechanical Seals guaranteed no leakage and easy maintenance.
3:The unique design of flexible exhaust port can protect the pump from the over-pressure to ensure 2BV is efficient in its performance range.

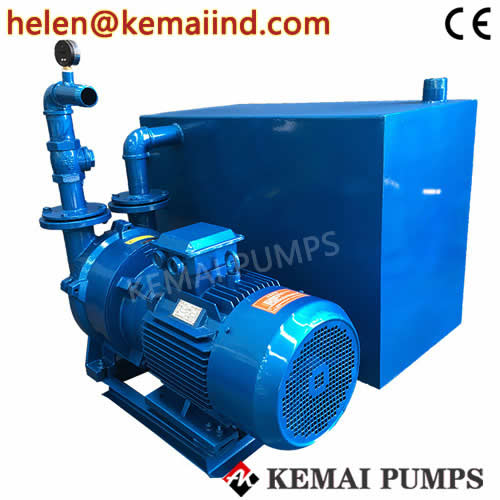

4:2BV series products have the cavitation protection port. When they work under the condition near the limited vacuum, the cavitation protect port opens (or connects with the separator)to get rid of the screaming to protect the pump.
5:Corrosion-resistant design and bronze impeller improves the corrosion resistance of the pump, stainless steel material is more suitable for more demanding applications.

Water Ring Vacuum Pump 2BV Model Data Table:

Model	Ultimate Pressure Mbar(Pa)	Suction Capacity M3/min	Motor Power KW	Rotary Speed Rpm	Liquid Flow Rate L/min	Noise dB(A)	Weight Kg
2BV2060	33(3300)	0.45	0.81	2880	2	62	20
2BV2061	33(3300)	0.87	1.45	2880	2	65	22
2BV2070	33(3300)	1.33	2.35	2880	2.5	66	31
2BV2071	33(3300)	1.83	3.85	2880	4.2	72	42
2BV5110	33(3300)	2.75	4	1450	7	63	78
2BV5111	33(3300)	3.83	5.5	1450	8.5	68	100
2BV5121	33(3300)	4.68	7.5	1450	10	69	145
2BV5131	33(3300)	6.68	11	1450	15	73	165
2BV5161	33(3300)	8.3	15	970	20	74	252
2BV6110	33(3300)	2.75	4	1450	7	63	107
2BV6111	33(3300)	3.83	5.5	1450	8.5	68	142
2BV6121	33(3300)	4.68	7.5	1450	10	69	198
2BV6131	33(3300)	6.68	11	1450	15	73	238
2BV6161	33(3300)	8.3	15	970	20	74	350
