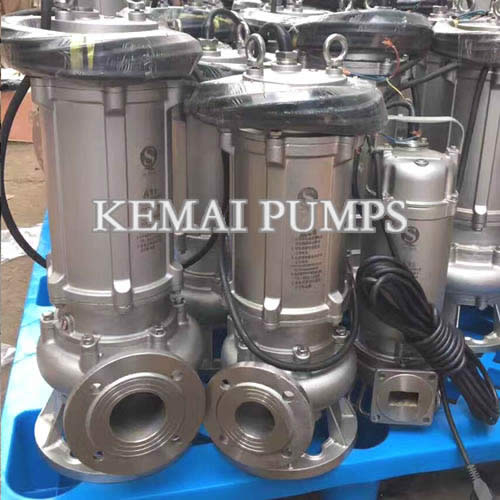

WQ series submersible sewage water pump Max.permissible fluid temperature:80°C. WQ sewage pump casing material:cast iron or stainless steel(SUS 304,SUS 316).
Introduction:
- Botou kemai pump WQ series submersible sewage water pump is new-generation products.
- It is an ideal pump for waste water,dirty water, rainwater, living water, sewage contains solid, food plastic bags,long fiber and other suspensions.
- The impeller adopts particular largechannel structure, so the drain capacity has been improved greatly.
- Mechanical seal adopts the latestmaterial and is made with extra care, so its life is over 8000 hours.

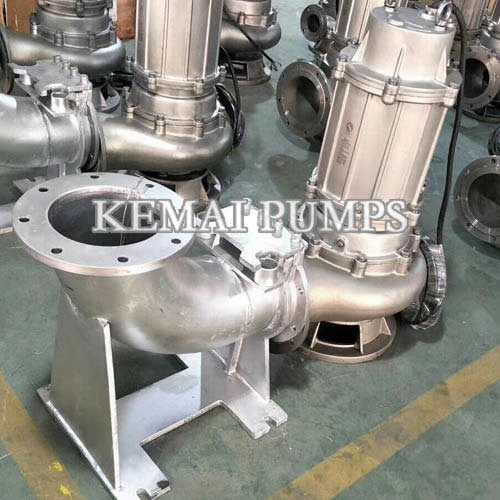

- The dirty water submersible pump canadopt double-way and automatic coupling installation device which makes theinstallation, maintenance of the unit convenient and quick.
- Mainly used for municipal works,industrial buildings, hotels, hospitals, civil air defense, mines, etc.
WQ Sewage Pump Flow And Head Data:
| Model | Caliber (mm) | Flow (m3/h) | Head (m) | Motor(kw) | Speed (r/min) |
| 25WQ8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 |
| 32WQ12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 |
| 40WQ15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 |
| 40WQ15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 |
| 50WQ20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 |
| 50WQ10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 |
| 50WQ20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 |
| 50WQ15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 |
| 50WQ18-30-3 | 50 | 18 | 30 | 3 | 2880 |
| 50WQ25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 |
| 50WQ20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 |
| 65WQ25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 |
| 65WQ37-13-3 | 65 | 37 | 13 | 3 | 2880 |
| 65WQ25-30-4 | 65 | 25 | 30 | 4 | 2890 |
| 65WQ30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 |
| 65WQ35-50-11 | 65 | 35 | 50 | 11 | 2930 |
| 65WQ35-60-15 | 65 | 35 | 60 | 15 | 2930 |
| 80WQ40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 |
| 80WQ43-13-3 | 80 | 43 | 13 | 3 | 2880 |
| 80WQ40-15-4 | 80 | 40 | 15 | 4 | 2890 |
| 80WQ65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 |
| 100WQ80-10-4 | 100 | 80 | 10 | 4 | 1440 |
| 100WQ110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 |
| 100WQ100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 |
| 100WQ85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 |
| 100WQ100-25-11 | 100 | 100 | 25 | 11 | 1460 |
| 100WQ100-30-15 | 100 | 100 | 30 | 15 | 1460 |
| 100WQ100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 |
| 125WQ130-15-11 | 125 | 130 | 15 | 11 | 1460 |
| 125WQ130-20-15 | 125 | 130 | 20 | 15 | 1460 |
| 150WQ145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 |
| 150WQ180-15-15 | 150 | 180 | 15 | 15 | 1460 |
| 150WQ180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 |
| 150WQ180-25-22 | 150 | 180 | 25 | 22 | 1470 |
| 150WQ130-30-22 | 150 | 130 | 30 | 22 | 1470 |
| 150WQ180-30-30 | 150 | 180 | 30 | 30 | 1470 |
| 150WQ200-30-37 | 150 | 200 | 30 | 37 | 1480 |
| 200WQ300-7-11 | 200 | 300 | 7 | 11 | 970 |
| WQ200-250-11-15 | 200 | 250 | 11 | 15 | 970 |
| 200WQ400-10-22 | 200 | 400 | 10 | 22 | 1470 |
| 200WQ400-13-30 | 200 | 400 | 13 | 30 | 1470 |
| 200WQ250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 |
| 200WQ300-15-22 | 200 | 300 | 15 | 22 | 1470 |
| 200WQ250-22-30 | 200 | 250 | 22 | 30 | 1470 |
| 200WQ350-25-37 | 200 | 350 | 25 | 37 | 1980 |
| 200WQ400-30-55 | 200 | 400 | 30 | 55 | 1480 |
| 250WQ600-9-30 | 250 | 600 | 9 | 30 | 980 |
| 250WQ600-12-37 | 250 | 600 | 12 | 37 | 1480 |
| 250WQ600-15-45 | 250 | 600 | 15 | 45 | 1480 |
| 250WQ600-20-55 | 250 | 600 | 20 | 55 | 1480 |
| 250WQ600-25-75 | 250 | 600 | 25 | 75 | 1480 |
| 300WQ800-12-45 | 300 | 800 | 12 | 45 | 980 |
| 300WQ500-15-45 | 300 | 500 | 15 | 45 | 980 |
| 300WQ800-15-55 | 300 | 800 | 15 | 55 | 980 |
| 300WQ600-20-55 | 300 | 600 | 20 | 55 | 980 |
| 300WQ800-20-75 | 300 | 800 | 20 | 75 | 980 |
| 300WQ950-20-90 | 300 | 950 | 20 | 90 | 980 |
| 300WQ1000-25-110 | 300 | 1000 | 25 | 110 | 980 |
| 350WQ1100-10-55 | 350 | 1100 | 10 | 55 | 980 |
| 350WQ1500-15-90 | 350 | 1500 | 15 | 90 | 980 |
| 350WQ1200-18-90 | 350 | 1200 | 18 | 90 | 980 |
| 350WQ1100-28-132 | 350 | 1100 | 28 | 132 | 740 |
| 350WQ1000-36-160 | 350 | 1000 | 36 | 160 | 740 |
| 400WQ1500-10-75 | 400 | 1500 | 10 | 75 | 980 |
| 400WQ2000-15-132 | 400 | 2000 | 15 | 132 | 740 |
| 400WQ1700-22-160 | 400 | 1700 | 22 | 160 | 740 |
| 400WQ1500-26-160 | 400 | 1500 | 26 | 160 | 740 |
| 400WQ1700-30-200 | 400 | 1700 | 30 | 200 | 740 |
| 400WQ1800-32-250 | 400 | 1800 | 32 | 250 | 740 |
| 500WQ2500-10-110 | 500 | 2500 | 10 | 110 | 740 |
| 500WQ2600-15-160 | 500 | 2600 | 15 | 160 | 740 |
| 500WQ2400-22-220 | 500 | 2400 | 22 | 220 | 740 |
| 500WQ2600-24-250 | 500 | 2600 | 24 | 250 | 740 |

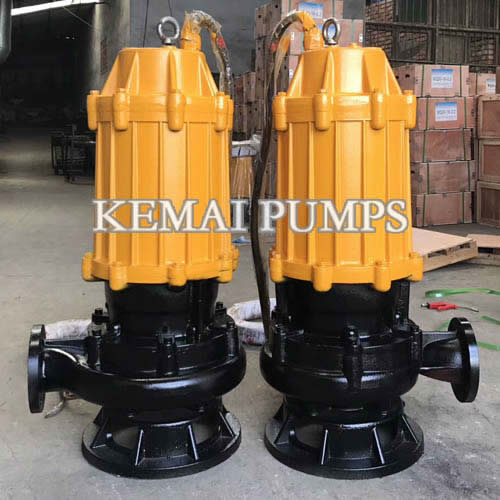

WQ Series Submersible Sewage Water Pump
