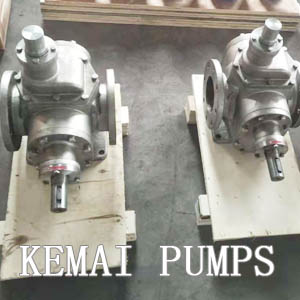

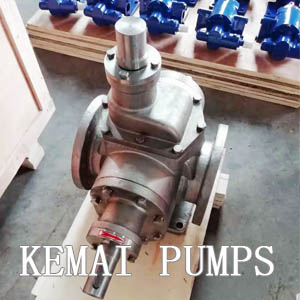

YCB stainless steel gear pump characteristics
YCB stainless steel gear pump characteristics
1 Model and standard technical data of gear pump
1.1 Model and standard technical data of pump
Motor power is chosen according to the shaft power, when the viscosity of oil is at 30cst.
The motor power should be raised along with the increase of the viscosity, the exhaust pressure or the exhaust with safety valve.
2.1 Selection of the motor speed: Four-phase motor is for viscosity below 500cst; six-phase motor is for viscosity above 500cst.
The standard scope of viscosity: 5—1500cst.
Temperature below 80℃.
The direction of rotation is clockwise viewed from coupling end (the pump in entrance is on the left and exhaust exit on the right) If the users require to change the rotation, please indicate when ordering.
2 YCB stainless steel gear pump this series pump is characterized as simple construction and compactness. Pump body and safety valve are separated. So it is easy to use and maintain.Quality of the product is guaranteed, for the main parts are made of top-quality steel and precisely processed.
2.1 Oil pump has the self-absorption function. So it is unnecessary to add oil before working.
2.2 Lubrication of pump is achieved automatically through the transmission of oil. So no lubrication oil is necessary while working.
2.3 Selection of the motor speed: Four-phase motor is for viscosity below 500cst; six-phase motor is for viscosity above 500cst.
2.4 The standard scope of viscosity: 5—1500cst.
2.5 Temperature below 80℃.
2.6 The direction of rotation is clockwise viewed from coupling end (the pump in entrance is on the left and exhaust exit on the right) If the users require to change the rotation, please indicate when ordering.
