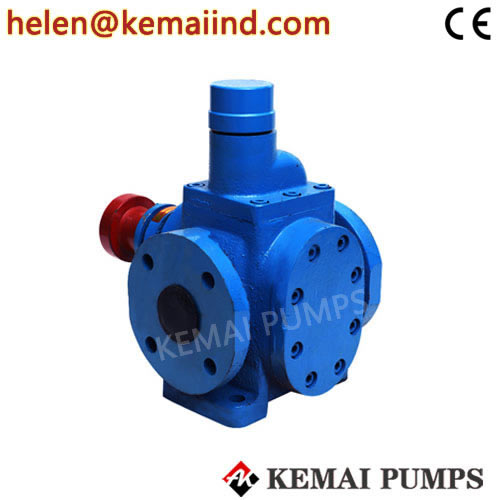

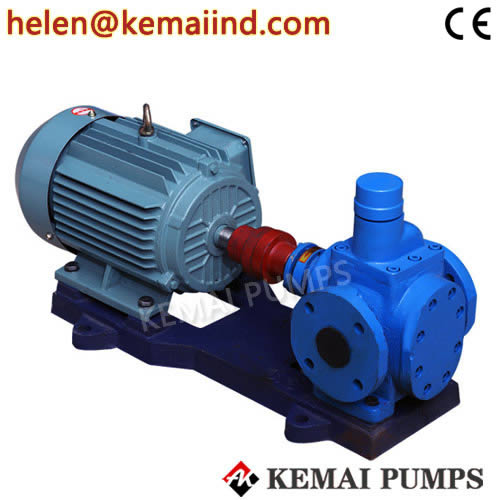

YCB20-0.6 Gear Oil Pump:flow is 20m³/h; Head:60m Inlet/Outlet:DN80; Motor:7.5KW-960RPM;
YCB20-0.6 Gear Oil Pump Application:
YCB20-0.6 Gear Oil Pump with large output, suitable for different oily liquid transfer which is without solid, with viscosity of 5-1500C.s.t, at temperature below 150°C, such as crude oil, diesel oil, lubricant oil, animal and vegetable oil etc. It’s also
available for transferring gasoline, benzene and other low- flash point liquid when coppered with bronze gear.
YCB20-0.6 Gear Oil Pump Atructural Features:

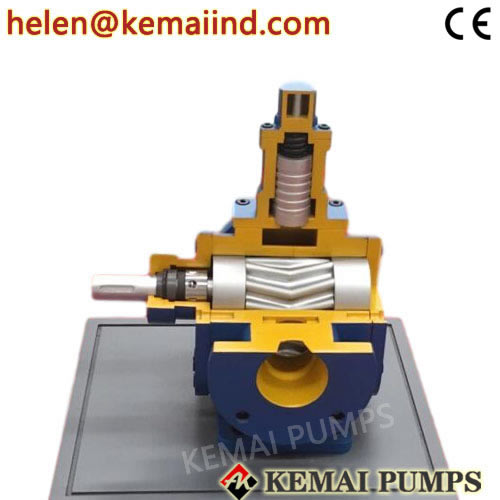

YCB20 Gear Pump are mainly composed of gears,axles,pump body ,pump cap,bearing sleeves and axle-end seals,etc.The gears are adoped double circular teech shape,which makes the gears less wear on gear surface,stable revolution,low noise,long service life and high efficiency ,
due to on sliding on the teeth during gear falling-in.This kind of pump has got rid of traditonal design and come into a new decade in designing and application.
The pump is designed with safety valve for protection against overload.The full return flow pressure is 1.5times higher than the rated exhaust pressure of the pump.
It can be adjusted within the allowance of exhaust pressure range according to Circumstance .
But please note the safety valve can’t be applied as presusure-reducing valve for long time.You may install pressure-reducing valve separately on pipe-line if needed.
YCB20 Gear Oil Pump can be adjusted within the allowance of exhaust pressure range according to circumstance.
Besides the normal one, we also provide the heat preservation one for different usages.
There are two kinds of axle-end seals,mechanical seal and packing seal ,which can be chosen according to the clients’ requirement or application circumstance.
|
Model |
Q |
Speed |
Pressure |
(NPSH)r |
Hz |
KW |
Model |
|
YCB20-0.6 |
20 |
970 |
0.6 |
5 |
50 |
7.5 |
Y160M-6 |
|
24 |
1170 |
60 |
7.5 |
Y160M-6 |
|||
|
YCB25-0.6 |
25 |
970 |
0.6 |
5.5 |
50 |
11 |
Y160L-6 |
|
30 |
1170 |
60 |
11 |
Y160L-6 |
|||
|
YCB30-0.6 |
30 |
970 |
0.6 |
5.5 |
50 |
11 |
Y160L-6 |
|
36 |
1170 |
60 |
11 |
Y160L-6 |
