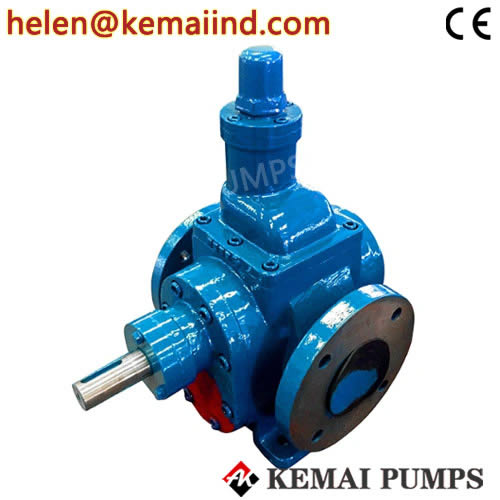

YCB4 YCB6 Gear Oil Pump:flow is 4m³/h; Inlet/Outlet:DN50; Motor:1.5KW-960RPM; Material: cast iron, SS304,SS316,SS316L.
YCB4 YCB6 Gear Oil Pump:flow is 6m³/h; Inlet/Outlet:DN50; Motor:2.2KW-1420RPM; Material: cast iron, SS304,SS316,SS316L.
YCB4 YCB6 Gear Oil Pump Specification:
Gear Pump Viscosity:(5-1500cSt) MAX. Temperature:150 degrees
Pressure:0.6-2.5Mpa Speed:960-1770r/min Capacity:0.6-80m³/h
YCB4 YCB6 Gear Oil Pump Atructural Features:

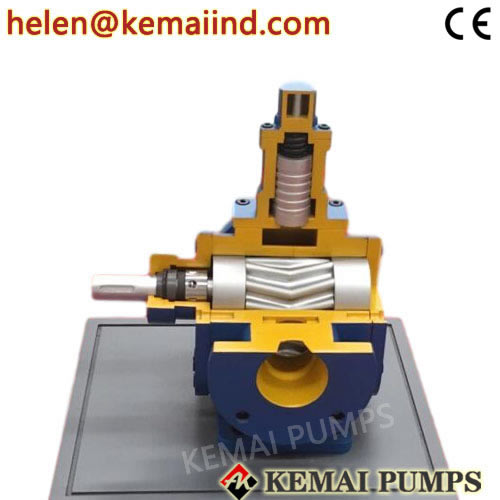

YCB gear pump are mainly composed of gears,axles,pump body ,pump cap,bearing sleeves and axle-end seals,etc.
The gears are adoped double circular teech shape,which makes the gears less wear on gear surface,stable revolution,low noise,long service life and high efficiency ,due to on sliding on the teeth during gear falling-in.
Gear Oil Pump safety valve：
The pump is designed with safety valve for protection against overload.The full return flow pressure is 1.5times higher than the rated exhaust pressure of the pump.
It can be adjusted within the allowance of exhaust pressure range according to Circumstance .
|
Model |
Q |
Speed |
Pressure |
(NPSH)r |
Hz |
KW |
Model |
|
YCB4-0.6 |
4 |
940 |
0.6 |
5 |
50 |
1.5 |
Y100L-6 |
|
6 |
1420 |
50 |
2.2 |
Y100L1-4 |
|||
|
4.8 |
1150 |
60 |
2.2 |
Y112M-6 |
|||
|
7.2 |
1730 |
60 |
3 |
Y100L2-4 |
|||
|
YCB4-1.6 |
4 |
960 |
1.6 |
7 |
50 |
5.5 |
Y132M2-6 |
|
6 |
1440 |
50 |
7.5 |
Y132M-4 |
|||
|
4.8 |
1170 |
60 |
5.5 |
Y132M-6 |
|||
|
7.2 |
1750 |
60 |
7.5 |
Y132M-4 |
