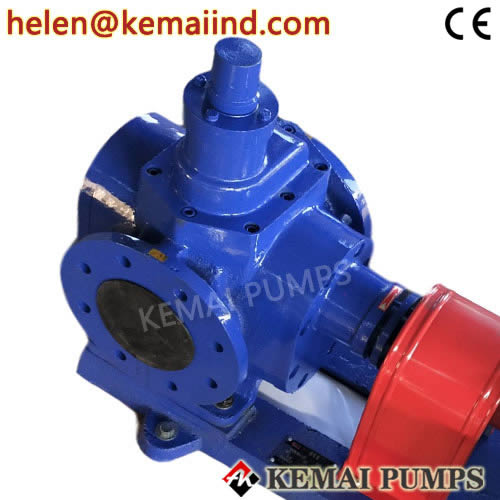

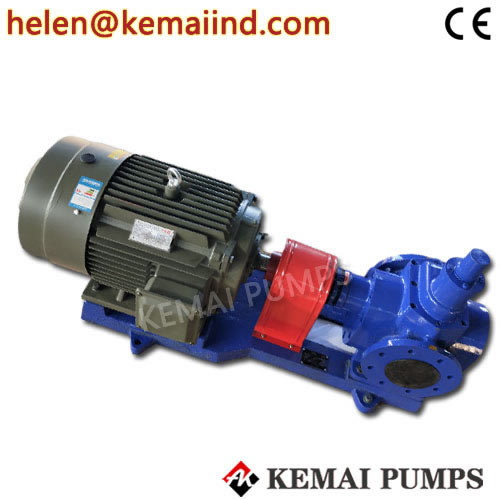

YCB40-0.6 Gear Oil Pump Structural features:
YCB40-0.6 Gear Oil Pump is the double arc sine curve tooth type arc. Compared with the involute gear.
Its outstanding advantage is that the tooth face and outing did not slip relatively during the gear-messing process.
As such. the tooth face as no damage,operates well,no trapped fluid phenomenon.
low lose,long life span and high efficiency. This pump rid itself of the limitations of traditional design.
which make the gear pump enter a new field in design,production and application.
YCB40 Gear Oil Pump with large output. suitable for different oily liquid transfer which is without solid, with viscosity of 5-1500C.s.t, at temperature below 150°C. such as crude oil, diesel oil, lubricant oil, animal and vegetable oil etc. It’s also available for transferring gasoline, benzene and other low- flash point liquid when coppered with bronze gear.
YCB40-0.6 Gear Oil Pump Introduction:
YCB-0.6 Gear Pump hydraulic gear pump apply to transmit the fabricating oil and other liquid with the feathers like lubricating oil without solid particles, fiber, and non-corrosive.
A: It’s a good pump in hydraulic driven system.
B:Pump can be adjusted within the allowance of exhaust pressure range. C:according to circumstance.Besides the normal one, we also provide the heat preservation one for different usages.
|
Model |
Q |
Speed |
Pressure |
(NPSH)r |
Hz |
KW |
Model |
|
YCB20-0.6 |
20 |
970 |
0.6 |
5 |
50 |
7.5 |
Y160M-6 |
|
24 |
1170 |
60 |
7.5 |
Y160M-6 |
|||
|
YCB25-0.6 |
25 |
970 |
0.6 |
5.5 |
50 |
11 |
Y160L-6 |
|
30 |
1170 |
60 |
11 |
Y160L-6 |
|||
|
YCB30-0.6 |
30 |
970 |
0.6 |
5.5 |
50 |
11 |
Y160L-6 |
|
36 |
1170 |
60 |
11 |
Y160L-6 |
