YCB50-0.6 Gear Oil Pump features:
YCB50-0.6 Gear Oil Pump in the gear meshing process, the tooth profile surface has no relative sliding, so the tooth surface has no wear. Smooth running. Fluid free phenomenon. Low noise. Long life. High efficiency.
It can be used as a booster pump in the oil transportation system;
A fuel pump used in a fuel system for transportation, pressurization, and injection;
A hydraulic pump used to provide hydraulic power in a hydraulic transmission system;
It can be used as lubricating oil pump in all industrial fields;
It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 150 deg C and with the viscosity of 5-1500cSt. It applies to hydraulic system, too.
YCB50-0.6 Gear Oil Pump Structure:

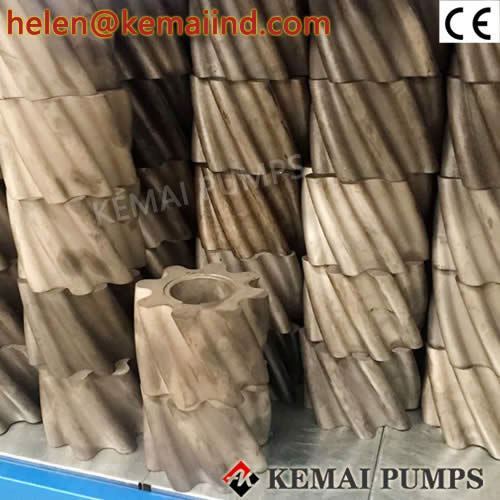

YCB Gear Pump are mainly composed of gears, axles, pump body, pump cap, bearing sleeves and axle-end seals, etc. The gears are adopted double circular teeth shape, which makes the gears less wear on gear surface, stable revolution, low noise, long service life and high efficiency, due to on sliding on the teeth during gear falling-in.
|
Model |
Q |
Speed |
Pressure |
(NPSH)r |
Hz |
KW |
Model |
|
YCB30-0.6 |
30 |
970 |
0.6 |
5.5 |
50 |
11 |
Y160L-6 |
|
36 |
1170 |
60 |
11 |
Y160L-6 |
|||
|
YCB40-0.6 |
40 |
970 |
0.6 |
5.5 |
50 |
15 |
Y180L-6 |
|
48 |
1180 |
60 |
15 |
Y180L-6 |
|||
|
YCB50-0.6 |
50 |
970 |
0.6 |
5.5 |
50 |
22 |
Y200L2-6 |
|
60 |
1180 |
60 |
22 |
Y200L2-6 |
