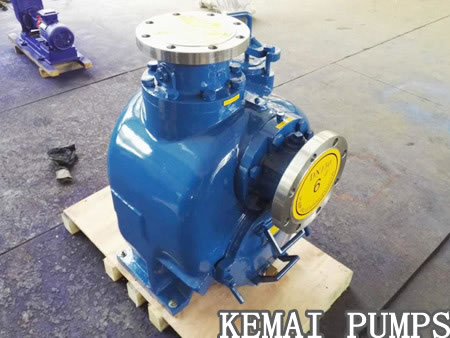

Self Priming Pump

Self Priming Pump Structure.What is a self priming pump? And pump installation. China kemai pump provided self priming centrifugal pump for waste, sewage, diesel, gasoline, kerosene and so on.

Pump material: cast iron, stainless steel(SS 304 316 316L)

Self Priming Pump Structure

It is composed of pump shell, liquid storage chamber, volute chamber, impeller, shaft seal, check valve, backflow valve and backflow hole.
Fill the reservoir with water before starting the pump for the first time.
After the pump is started, the pump inlet liquid is thrown into the volute chamber into the liquid storage chamber.

Thus forming a vacuum, under the action of pressure difference. Water in the liquid storage chamber through the open backflow valve from the backflow hole into the impeller population.
Mix well with gas from the population line.
Then the impeller is thrown out into the storage room.
The gas-liquid mixture separates under the action of density difference, and the gas rises to the top of the liquid storage chamber and drains into the outlet pipe.

The liquid sinks below the reservoir and passes through the return hole to the impeller inlet.
After the normal operation of the pump, the backflow hole will close automatically under the action of pressure difference.

What is a self priming pump?

Self priming pump belong self priming centrifugal pump. It has compact structure, convenient operation, high efficiency and long service life. Has a strong ability of self-absorption. The pipeline does not need to install the foot valve. Make sure there is liquid in the pump before work. Choose different materials for different liquids.

The working principle of the self-priming pump is that the pump is filled with water (or water stored in the pump shell) before starting. After starting, the impeller rotates at a high speed to make the water flow in the impeller groove toward the vortex shell. At this time, a vacuum is formed at the inlet, so that the inlet gate is opened and the air in the suction pipe enters the pump and reaches the outer edge through the impeller groove.

•

•

•

Common Model And Main Applications

Common Model

1. Equipped with rocker sprayer, it is a good tool for farms, nurseries, orchards and tea gardens.
   2, suitable for water, sea water and chemical liquid with acid, alkalinity. (medium viscosity is less than 100 centipercentile, solid content up to 30%).
2. It can be used with any type and specification of filter press.

Main Applications

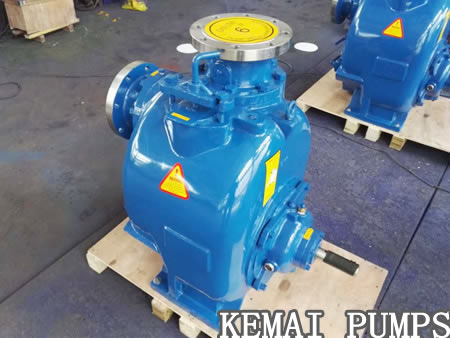

ZW type self priming non-clogging sewage pump. It is based on the structure and performance of ZX self-priming centrifugal pump and QW submersible sewage pump.

Learn from the advantages of foreign similar products, self-suction and sewage in a new pump. There is no need to install the bottom valve and no need to irrigate water. Can be pumped containing large particles, solid diameter of 60% of the outlet diameter, fiber length of 1.5 times the diameter of the impeller liquid. Reduce people’s labor intensity, have broad application market and development prospect.

Self Priming Pump installation

Motor and coupling:

1: Pump and motor drive, should pay attention to the pump shaft and motor output coaxiality;
The accuracy of pump installation has a great influence on the running stability and service life of the pump.

2: The pump spider coupling must be a good solid nut, and lock the nut, beware of loose nut, otherwise easy to cause impeller channeling, causing mechanical failure.

3: Pump coupling must be a good solid nut, and lock the nut, beware of loose nut. Otherwise easy to cause impeller channeling, causing mechanical failure.

4: In order to make the pump body can maintain a certain amount of storage fluid. In order to achieve a good self-absorption ability and prevent mechanical seal dry friction, must make the pump inlet higher than the center line of the pump shaft.

Pump pipeline:

1:Attention shall be paid to the installation of suction pipeline:

• A. The installation height of suction inlet shall not exceed 5 meters. When conditions permit. The installation height of suction inlet shall be as far as possible lower than the lowest water storage level of the pool. Length of the suction pipe shall be shortened as far as possible with fewer elbows. Which is conducive to shortening the time of self-suction and improving the self-suction function.
• B. valves and flanges in the suction pipe shall be strictly protected against air leakage or leakage of liquid. That is, no air leakage is allowed in the suction pipe.
• C. Solids and other sundries shall be prevented from being inhaled into the pump body. Filters shall be set on the suction pipe for this purpose.
• D. The suction line and the discharge line shall have their own supports, and the pump body itself is not allowed to bear the load of the line.

2:When the pump is installed, the static grounding resistance of the pump and pipeline shall meet the specified requirements.

3:Strictly check whether there are stones, iron sand and other sundries in the pump shell and pipeline during installation.

Pump operation

1: Correct the installation clearance and coaxiality of the pump coupling and electric motor coupling. Allowable deviation of the non-coaxiality is 0.1mm.
The height difference between the pump shaft and the motor shaft can be adjusted by copper or iron backing.

2:After the actual operation of the unit for 3-4 hours, make the final inspection. If there is no adverse phenomenon, the main installation is complete.

3:The bearing body of the pump is equipped with cooling water connector with cooling chamber device for the use of rubber or plastic pipes with 12 inner holes, and the thread size is m12x1.75.

4:In the self priming pumps outlet pipeline such as equipped with a one-way valve and in the process of self-absorption can not make the pump smoothly out of gas, should be added in the outlet of the pump exhaust pipe and valve.
